Automatic Bandsaw Machine SHARK 230-1 NC HS 5.0 MEP

The Bandsaw Machine Automatic SHARK 230-1 NC HS 5.0 MEP is a cutting-edge industrial tool tailored for precise metal cutting tasks. Equipped with advanced NC (Numerical Control) technology and a high-speed cutting capability, it delivers efficient and accurate results.

Description

SHARK 230-1 NC HS 5.0

SHARK 230-1 NC HS 5.0, dual-column electrohydraulic automatic band sawing machine for 0° cuts of structural, stainless and alloy steels, solids and profiles. In addition to the automatic cycle.The automatic dual-column band sawing machine with a footprint of 2.5 sqm only: the winning combination between maximum performance and minimum space!

SHARK 230-1 NC HS 5.0

Adaptive Saw Head Down Feed Rate

Self-regulation in real-time of head down feed rate according to the type of material or blade wear.

ADAPTIVE SAW HEAD DOWN FEED RATE

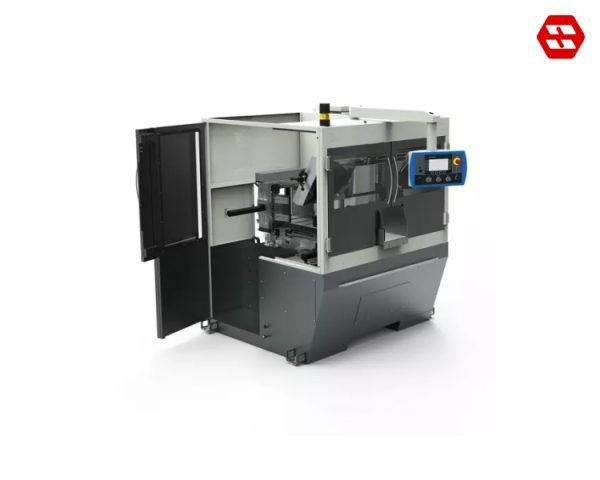

Hihg Safety

"Saw in the box" style that ensures maximum operator's safety according to the EC regulation and safety interlocks in accordance with the UNI 14119 regulation.

HIGH SAFETY

Industry 4.0 Ready-IOT

The optional IOT allows to maximize data collection and use them in favor of a better sawing machine cutting performance and longer blade life.

INDUSTRY 4.0 READY-IOT

Optimized Footprint

Great compactness thanks to a footprint of 2.5 sqm only.

OPTIMIZED FOOTPRINT

Technical Data Bandsaw Machine Semi Automatic
SHARK 230-1 NC HS 5.0 MEP

CUTTING RANGE


230 mm230 mm

PERFORMANCE CHARACTERISTICS

Max. vice opening235 mm
Minimum cutting length10 mm
Rest piece no longer feeded85 mm
Band size2950 x 27 x 0.9 mm
Blade motor power2.2 Kw – Three-phase
Blade rotation speed15 ÷ 100 m/min
