Automatic Bandsaw Machine SHARK 331-1 NC 5.0 SPIDER MEP

The Bandsaw Machine Automatic SHARK 281 NC 5.0 MEP is a cutting-edge industrial tool designed for precision and efficiency. With its advanced NC (Numerical Control) system, it offers automated operation, optimizing workflow and minimizing manual intervention.

Description

SHARK 331-1 NC 5.0 SPIDER

SHARK 331-1 NC 5.0 SPIDER, electrohydraulic automatic band sawing machine to cut metals mitering from 0° to +60°. In addition to the automatic cutting cycle, it can also operate in semi-automatic mode. The automatic band sawing machine with a small footprint and excellent performance

SHARK 331-1 NC 5.0 SPIDER

Adaptive Saw Head Down Feed Rate

Self-regulation in real-time of head down feed rate according to the type of material or blade wear.

ADAPTIVE SAW HEAD DOWN FEED RATE

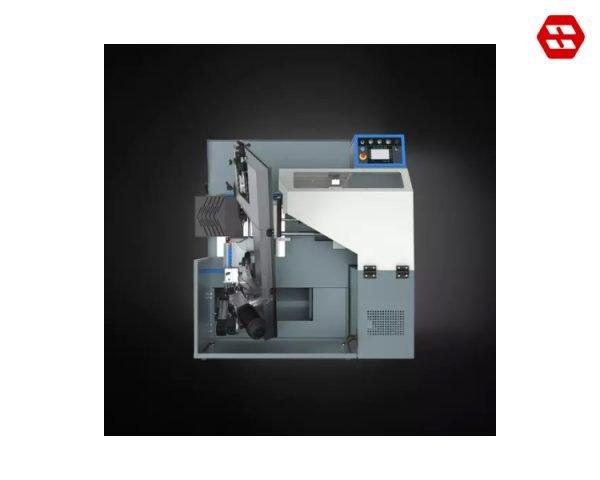

Super Compact Design and High Safety3.5 SM of Floor Space Only!

Operator's safety is guaranteed by the safety guarding surrounding the sawing machine according to the EC regulation with safety interlocks in accordance with the UNI 14119 regulation.

SUPER COMPACT DESIGN AND HIGH SAFETY3.5 SM OF FLOOR SPACE ONLY!

Industry 4.0 Ready-IOT

The optional IOT allows to maximize data collection and use them in favor of a better sawing machine cutting performance and longer blade life.

INDUSTRY 4.0 READY-IOT

Two Cycle Modes

They allow to perform any kind of cut in the most efficient way.

TWO CYCLE MODES

Technical Data Bandsaw Machine Semi Automatic
SHARK 331-1 NC 5.0 SPIDER MEP

CUTTING RANGE


300 mm260 mm330 x 260 mm
+ 45°240 mm230 mm240 x 160 mm
+ 60°160 mm150 mm150 x 150 mm

PERFORMANCE CHARACTERISTICS

Max. vice opening335 mm
Minimum cutting length10 mm
Rest piece no longer feeded210 mm
Band size3650 x 27 x 0.9 mm
Blade motor power2.2 Kw – Three-phase
Blade rotation speed15 ÷ 100 m/min
