Description
SHARK 332-1 NC 5.0
SHARK 332-1 NC 5.0, electrohydraulic automatic band sawing machine to cut metals mitering from -45° to +60°. In addition to the automatic cutting cycle, it can also operate in manual, semi-automatic/dynamic and semi-automatic modes.The automatic band sawing machine also ideal for miter cutting that combines accuracy with great cutting quality, without any compromise

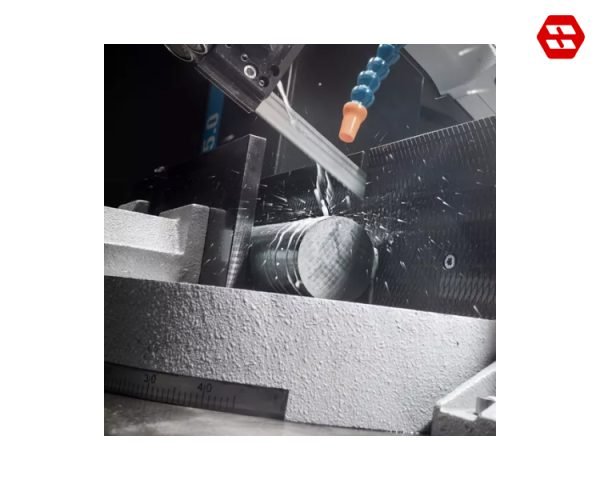

Adaptive Saw Head Down Feed Rate
Self-regulation in real-time of head down feed rate according to the type of material or blade wear.
Four Cycles Modes
Four Cycles Modes is a versatile feature found in various machinery and equipment, particularly in engines and industrial processes.
Industry 4.0 Ready-IOT
The optional IOT allows to maximize data collection and use them in favor of a better sawing machine cutting performance and longer blade life.
Technical Data Bandsaw Machine Semi Automatic
SHARK 332-1 NC 5.0 MEP
CUTTING RANGE
 |  |  | |
| 0° | 300 mm | 250 mm | 330 x 250 mm |
| + 45° | 260 mm | 250 mm | 260 x 200 mm |
| + 60° | 180 mm | 170 mm | 170 x 170 mm |
| + 45° | 240 mm | 210 mm | 240 x 160 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 335 mm |
| Minimum cutting length | 10 mm |
| Rest piece no longer feeded | 400 mm |
| Band size | 3650 x 27 x 0.9 mm |
| Blade motor power | 2.2 Kw – Three-phase |
| Blade rotation speed | 15 ÷ 100 m/min |
