Automatic Bandsaw Machine SHARK 332 RC KONNECT MEP

The Bandsaw Machine Automatic SHARK 332 RC KONNECT MEP is a cutting-edge industrial tool designed for precision cutting in metalworking applications. Featuring advanced automation capabilities and the innovative KONNECT technology, it offers seamless connectivity and control for enhanced efficiency and productivity.

Description

SHARK 332 RC KONNECT

SHARK 332 RC KONNECT, automatic electromechanical pivot band sawing machine with controlled automatic rotation to cut iron tubes, profiles and beams from -60° to +60°. In addition to the automatic operating cycle, it can also operate in semi-automatic mode.

SHARK 332 RC KONNECT

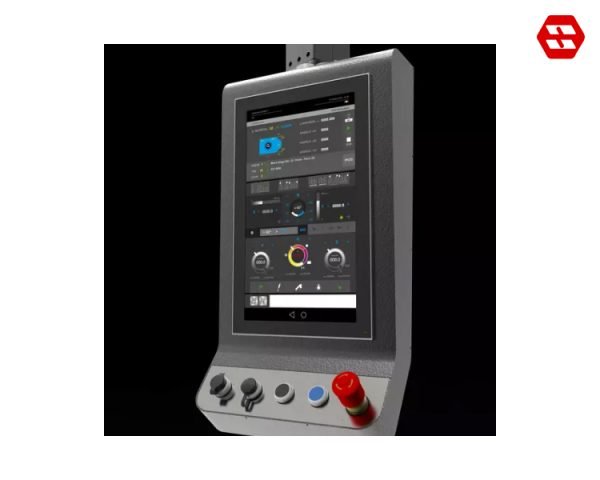

Konnect Control

Panel PC control, Quad core 2.0Ghz, 8-GB Ram, WINDOWS 10 and 17-inch touchscreen display with user-friendly graphic interface, which supports the operator during setting up, optimization and processing of various jobs.

KONNECT CONTROL

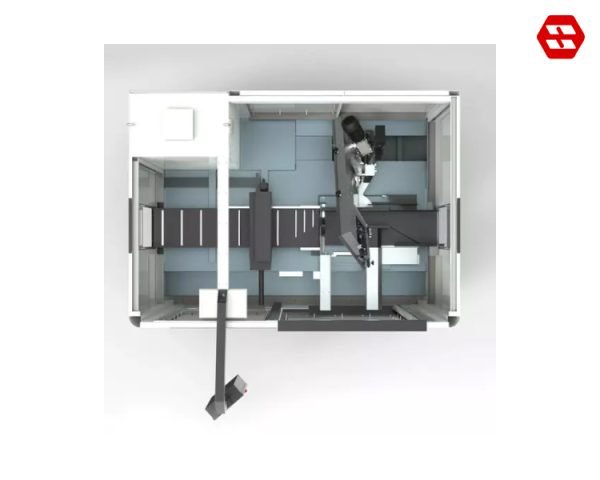

High Safety

"Saw in the box" style that ensures maximum operator's safety, while maintaining excellent visibility and accessibility of all working areas.

HIGH SAFETY

Industry 4.0 Ready-IOT

The optional IOT allows to maximize data collection and use them in favor of a better sawing machine cutting performance and longer blade life.

INDUSTRY 4.0 READY-IOT

Technical Data Bandsaw Machine Semi Automatic
SHARK 332 RC KONNECT MEP

CUTTING RANGE


310 mm300 mm330 x 300 mm230 x 310 mm
+ 45°250 mm230 mm250 x 130 mm220 x 300 mm
+ 60°160 mm155 mm160 x 80 mm140 x 290 mm
– 45°200 mm180 mm200 x 160 mm130 x 280 mm
– 60°130 mm110 mm140 x 80 mm40 x 250 mm

PERFORMANCE CHARACTERISTICS

Max. vice opening330 mm
Minimum cutting length10 mm
Rest piece no longer feeded390 mm
Band size3770 x 27 x 0.9 mm
Blade motor power2.2 Kw – Three-phase
Blade rotation speed15 ÷ 100 m/min
Inverter power
3.0 Kw
