Automatic Bandsaw Machine SHARK 350 NC HS 5.0 MEP

The Bandsaw Machine Automatic SHARK 350 NC HS 5.0 MEP is an advanced industrial cutting tool designed for precise metalworking operations. With its high-speed cutting capability and innovative MEP (Material End Point) system, it optimizes material usage for enhanced efficiency.

Description

SHARK 350 NC HS 5.0

SHARK 350 NC HS 5.0, dual-column electrohydraulic automatic band sawing machine for 0° cuts of structural, stainless and alloy steels, solids and profiles. In addition to the automatic cutting cycle, it can also operate in semi-automatic mode. The unbeatable dual-column automatic sawing machine in terms of speed and cutting accuracy

SHARK 350 NC HS 5.0

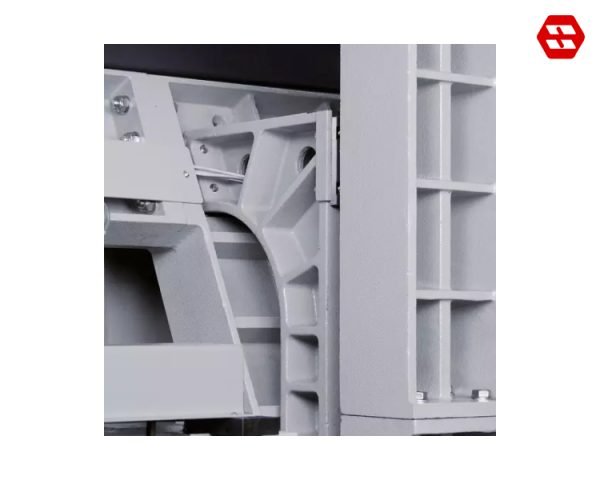

Cast-Iron Structure

Cast-iron structure to absorb vibrations and ensure greater cutting stability and longer blade life.

CAST-IRON STRUCTURE

Adaptive Saw Head Down Feed Rate

Self-regulation in real-time of head down feed rate according to the type of material or blade wear.

ADAPTIVE SAW HEAD DOWN FEED RATE

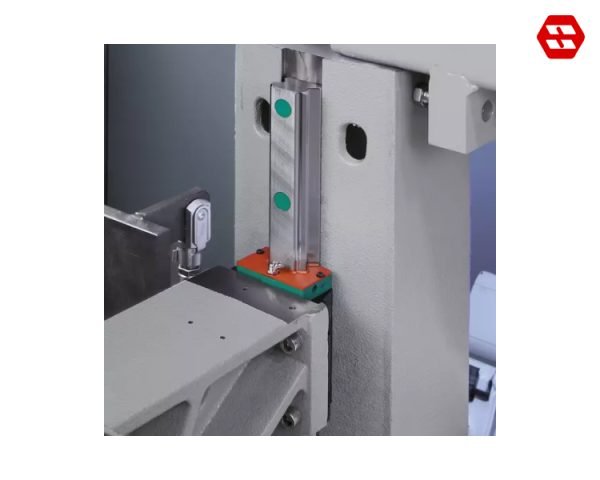

Motion of The Saw Head on Linear Guides With Preloaded Ball Screw Slides

Motion of the saw head on linear guides with preloaded ball screw slides that ensures a mechanical vibration reduction during the cut and greater cutting stability.

MOTION OF THE SAW HEAD ON LINEAR GUIDES WITH PRELOADED BALL SCREW SLIDES

Industry 4.0 Ready-IOT

The optional IOT allows to maximize data collection and use them in favor of a better sawing machine cutting performance and longer blade life.

INDUSTRY 4.0 READY-IOT

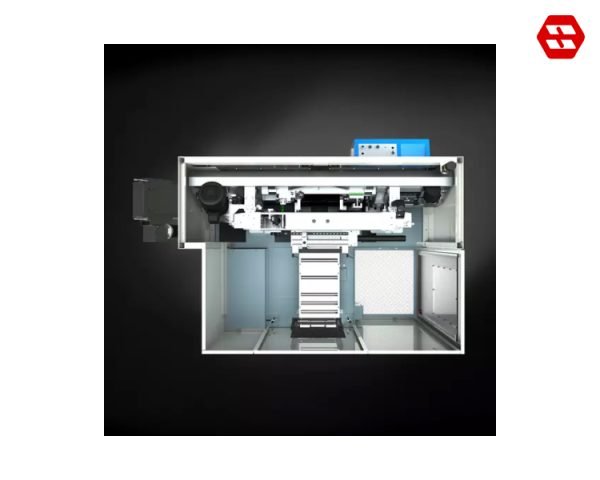

Hihg Safety

"Saw in the box" style that ensures maximum operator's safety according to the EC regulation and safety interlocks in accordance with the UNI 14119 regulation.

HIGH SAFETY

Technical Data Bandsaw Machine Semi Automatic
SHARK 350 NC HS 5.0 MEP

CUTTING RANGE


350 mm350 mm

PERFORMANCE CHARACTERISTICS

Max. vice opening355 mm
Minimum cutting length10 mm
Rest piece no longer feeded130  mm
Band size4640 x 34 x 1.1 mm
Blade motor power4.0 Kw – Three-phase
Blade rotation speed15 ÷ 100 m/min
Inverter power5.5 Kw
