Automatic Mitre HBE420-723GA
The Automatic Mitre Band Saw HBE420-723GA scores with high cutting performance, user-friendliness and precision. It cuts profile steels, tubes and solid materials made of steel or stainless steel at almost any angle.

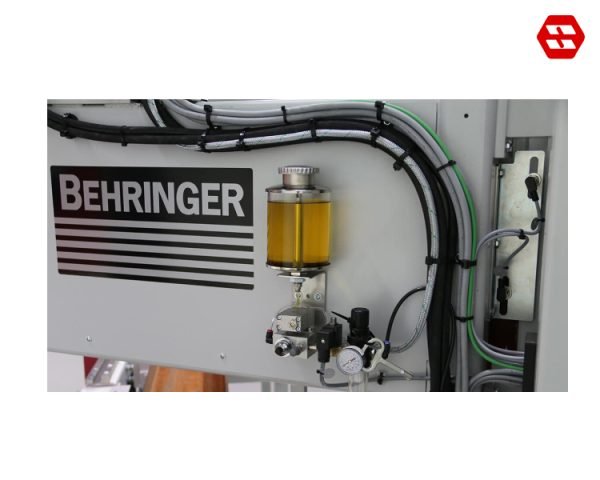

Micro Spray System
When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles

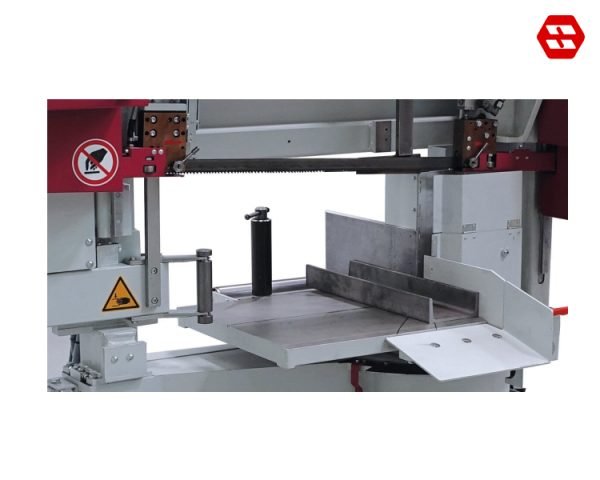

Enclosed Material Table
An Enclosed Material Table offers a secure and organized workspace for handling materials in various industrial applications. With protective barriers or sides, it ensures safety by containing materials within the table area, preventing spills or accidents.

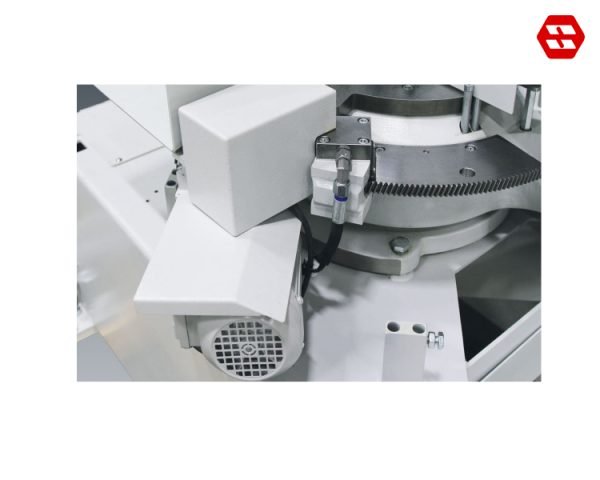

Automatic Mitre Angle Adjustment
Automatic mitre angle adjustment is a cutting-edge feature integrated into industrial machinery, enabling seamless and precise adjustments to cutting angles without manual intervention. This automated functionality streamlines workflow processes, enhancing efficiency and accuracy in metalworking and fabrication tasks.

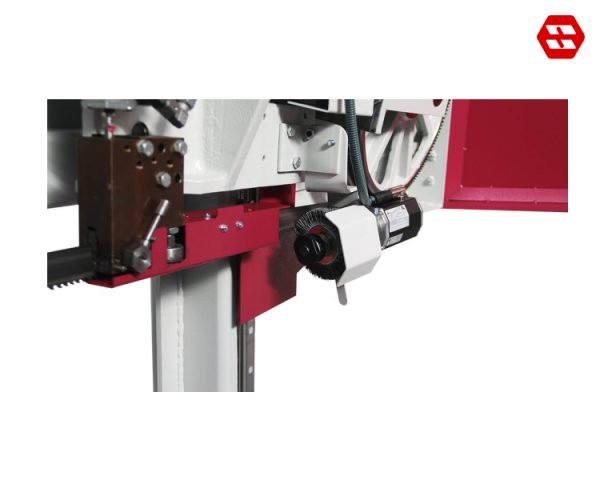

Electrically Driven Chip Brush
With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

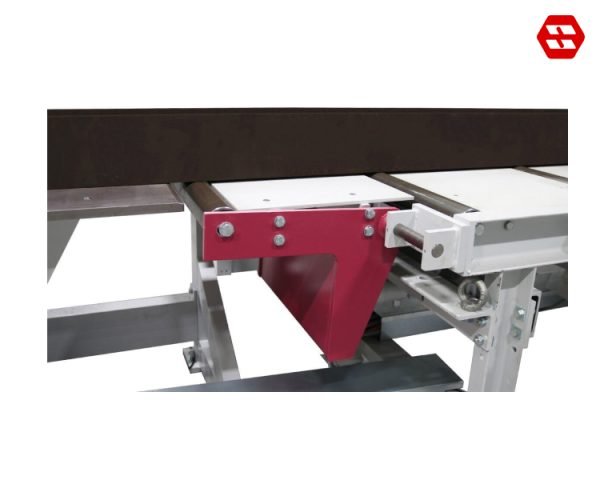

Lifting Roller on The Infeed Side
The lifting roller on the infeed side is a crucial component of industrial machinery, designed to effortlessly raise and guide materials into the processing area. This feature streamlines workflow by efficiently positioning materials for further processing, reducing manual effort and increasing productivity.
Powerful PC Control
The Powerful PC Control system offers advanced computing capabilities for precise and efficient management of industrial processes. With robust hardware and intuitive software, it enables comprehensive control and monitoring of equipment, ensuring optimal performance and productivity.

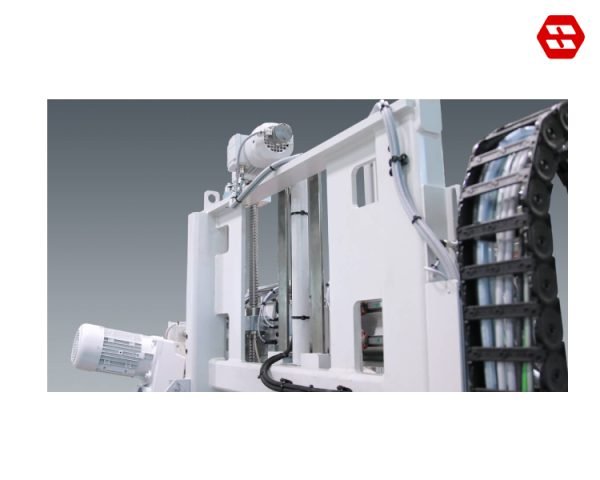

Servo Feed System With Cutting Pressure Control
The Servo Feed System with Cutting Pressure Control combines servo technology with precision pressure control for efficient and accurate metal cutting. This advanced system optimizes feed rates while dynamically adjusting cutting pressure, ensuring consistent and clean cuts across various materials
Features of The Metal Cutting Bandsaw HBE420-723GA
Sensitive BEHRINGER Cutting Pressure Control.
Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.
Precision Portal-Design Guide System.
The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.
Safe Material Flow - Even With Short Starting and Cut-off Lengths.
The closed table support and the clever connection to material handling systems offer maximum process reliability in fully automatic operation.
Downfeed Control With Servo Drive
The saw feed is carried out by means of a ball screw and servo motor. This results in considerably shorter non-productive times and more precise saw feeds.
Customer-Oriented Sawing Concepts.
BEHRINGER offers complete system solutions with individual material handling where everything fits together perfectly.
Energy-Efficient Drives.
More output with less energy consumption. Protects the environment and your wallet.
Hydraulic Blade Tensioning.
The saw band is always optimally tensioned by a hydraulic system. When the machine is at a standstill, the saw band is relieved, thus extending its service life.
Cast Iron Band Guiding Parts.
Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.
Automatic Guide Arm.
Optimum sawing result without any adjustments - even with frequently changing material sizes.
Feed Gripper With Retracting Fixed Jaw.
For automatic positioning of the starting material, the automatic mitre band saw HBE320-523GA has a 3,000 mm long feeding gripper
3° Inclination of The Saw Blade.
Provides higher cutting performance when sawing hollow profiles and beams and reduces burr formation.
Technical Data Mitre Bandsaw HBE420-723GA
| Cutting Range | |
| Cutting range 90° round | 420 mm |
| Cutting range 90° flat | 620 x 400 mm |
| 75° Mitre left round / flat | 400 mm / 620 x 400 mm |
| 60° Mitre left round / flat | 400 mm / 620 x 400 mm |
| 45° Mitre left round / flat | 400 mm / 540 x 400 mm |
| 30° Mitre left round / flat | 300 mm / 300 x 350 mm |
| 75° Mitre right round / flat | 400 mm / 620 x 400 |
| 60° Mitre right round / flat | 400 mm / 600 x 400 |
| 45° Mitre right round / flat | 400 mm / 470 x 400 |
| Smallest dimension to be sawn round | 20 mm |
| Smallest dimension to be sawn flat | 20 x 20 mm |
| Performance Characteristics | |
| Feeding length single stroke | 3,000 mm |
| Drive power | 5.2 kW |
| Blade speed | 15 – 130 m/min |
| Saw blade dimensions | 6,840 x 41 x 1.3 mm |
| Rest piece length | 150 mm |
| Total power11 kW | 11 kW |
| Saw feed | Servo feed via ball screw |
| Material feed | servo motor via gear rack |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 5,800 mm (swivelling range: 6,200 mm) |
| Width | 3,650 mm |
| Height | 2,650 mm |
| Weight | 3,600 kg |
| Material support height | 800 mm |
