Description
HBE1060A Performance
The HBE1060A Performance high-performance automatic saw is tailored for rigorous applications in the steel trade, manufacturing, and metal production sectors. It excels in cutting large pipes or solid materials, including steel, plastic, or high-alloy materials, delivering precise and powerful cuts with effortless material handling. Engineered for durability, the HBE1060A Performance boasts a robust construction suitable for tough operating conditions.

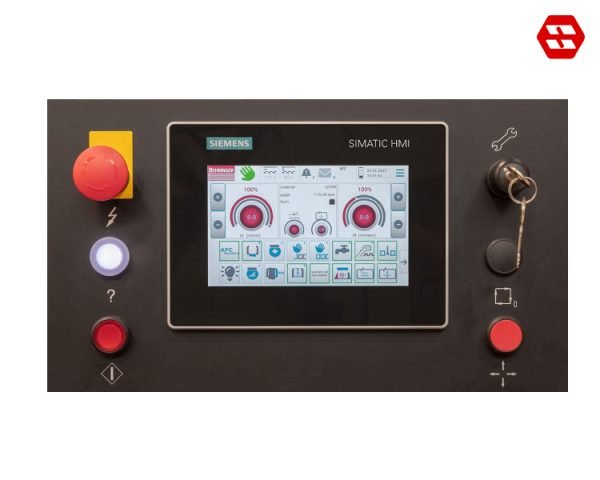

Intuitive BehrCtrl10 Touch Control
Experience intuitive control: BehrCtrl10 touchscreen

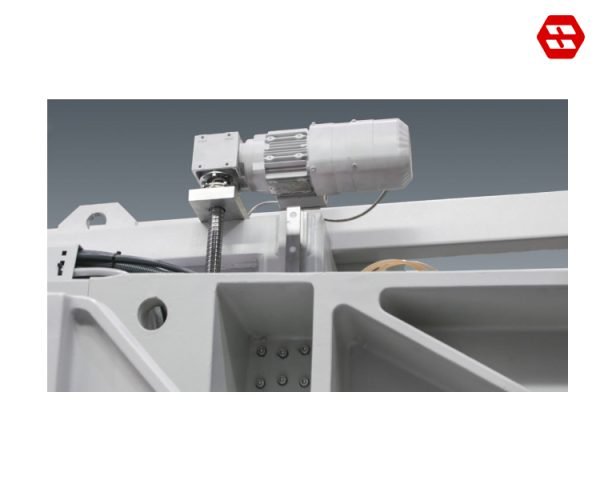

Servo-Downfeed With Cutting Pressure Control
Achieve precise cuts with automatic adjustment of cutting pressure, ensuring optimal performance and blade longevity.

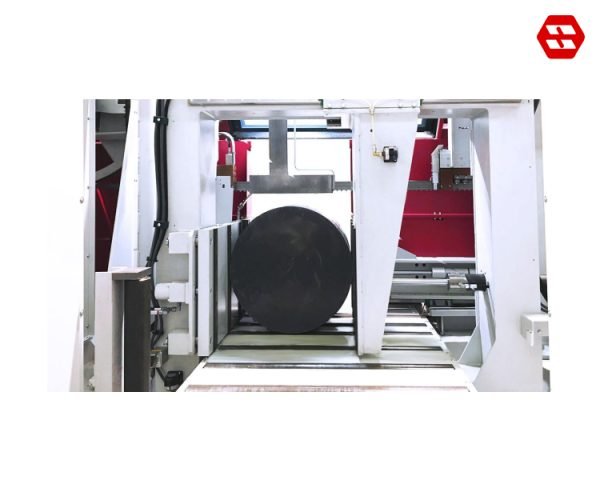

Massive Feed Gripper With Ball Screw
Massive feed gripper with ball screw: Ensure secure material handling and precise feeding in heavy-duty cutting operations.

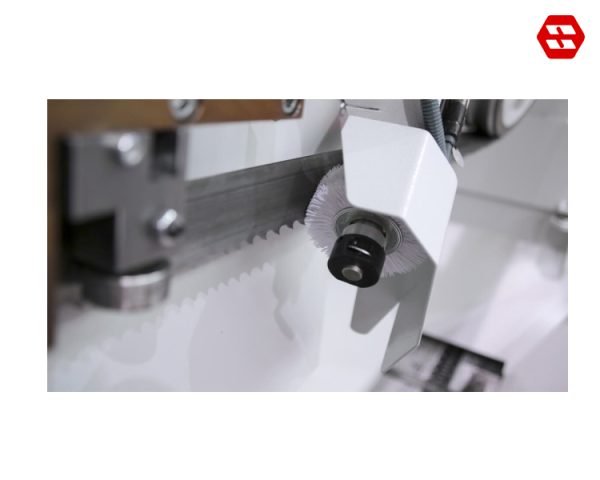

Electrically Driven Chip Brush
With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.
Features of The Production Bandsaw HBE1060A Performance
Sensitive BEHRINGER cutting pressure control.
Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.
Automatic Guide Arm.
Optimum sawing result without any adjustments - even with frequently changing material sizes.
Economical use of Carbide Saw Blades.
Due to robust design, use of latest servo technology and well dimensioned chip disposal.
Robust Feeding Gripper With Linear Retracting Fixed Vice Jaw.
Positions even solid material weighing tons to a tenth of a millimeter.
Cast Iron Band Guiding Parts.
Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.
Optimized for Single Cuts
The operator is supported in setting up individual cuts through the use of the feeding gripper and intelligent software.
Servo Downfeed System.
The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.
Economical use of Carbide Saw Blades.
Due to robust design, use of latest servo technology and well dimensioned chip disposal.
Auto-Feed-Control.
Selection of the material in an extensive material database. The AFC automatically calculates the optimal values for saw feed and cutting speed.
Precision Portal-Design Guide System.
The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.
Optimized for Single Cuts
The operator is supported in setting up individual cuts through the use of the feeding gripper and intelligent software.
Powerful Chip Conveyor.
Optimal chip disposal thanks to the funnel-shaped machine base and the paddle-style chip conveyor with an integrated coolant tank.
Technical Data Production Bandsaw HBE1060A Performance
| Cutting Range | |
| Cutting range 90° round | 1,060 mm |
| Cutting range 90° flat | 1,060 x 1,060 mm |
| Smallest dimension to be sawn round | 60 mm |
| Smallest dimension to be sawn flat | 60 x 20 mm |
| Performance Characteristics | |
| Feeding length single stroke | 500 mm |
| Drive power | 7.5 kW |
| Blade speed | 10 – 110 m/min |
| Saw blade dimensions | 10,505 x 67 (80) x 1.6 mm |
| est piece length in automatic operation | 55 mm |
| Total power | 12 kW |
| Saw feed | servo-feed via ball screw |
| Material feed | ball screw |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 2,525 mm |
| Width | 4,800 mm |
| Height | 3,550 mm |
| Weight | 11,000 kg |
| Material support height | 800 mm |
