HBM540ALU Performance Automatic
The HBM540ALU aluminum bandsaw is specifically engineered for cutting ingots and billets crafted from aluminum or similar non-ferrous metals like magnesium. Delivering swift, reliable, and precise cuts with minimal kerf, it promotes future-proof and resource-efficient production practices.

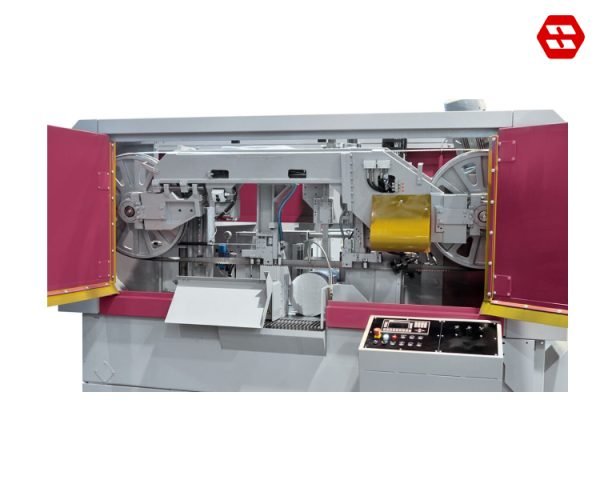

HBM High Performance Aluminium Sawing Unit
The HBM high-performance aluminum sawing unit offers precision and efficiency in cutting aluminum and similar non-ferrous metals. With advanced features and robust construction, this unit ensures swift and accurate cuts, contributing to optimized production processes.

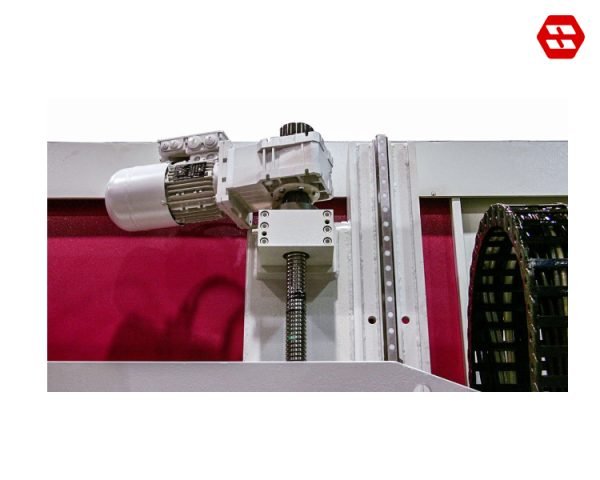

Servo Feed System For Short Non-Productive Times
The servo feed system minimizes downtime with swift, efficient transitions between cutting tasks.

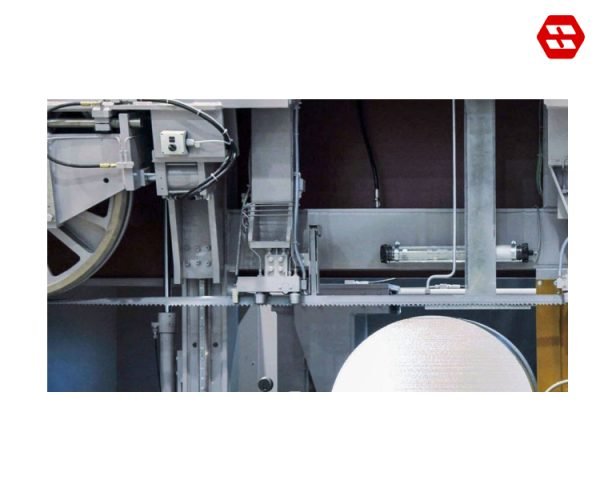

Roller Band Guides With Integrated Spray Lubrication
Ensure precise guidance of the saw band even at extremely high blade speeds. For a long service life, the bearings of the rollers are centrally lubricated by an automatic lubrication system.
Features of The Production Bandsaw HBM540ALU
Prepared For Automation.
A powerful machine concept puts high demands on material handling. The production band saws of the HBM series are often configured as automated sawing systems.
Precision Portal-Design Guide System.
The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.
Micro Spray System.
For process-safe lubrication of the saw band with spray oil. Due to the special arrangement of the spray nozzles, the saw band is reliably moistened even at high speed.
Chip disposal Suitable For The Application.
In the high-performance sawing of aluminium and non-ferrous metals, large quantities of chips are produced that have to be removed reliably.
Economical Use of Carbide Saw Blades.
Due to robust design, use of latest servo technology and well dimensioned chip disposal.
Servo Downfeed System.
The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.
Automatic Guide Arm.
Optimum sawing result without any adjustments - even with frequently changing material sizes.
Cast Iron Band Guiding Parts.
Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.
Technical Data Production Bandsaw HBM540ALU
| Cutting Range | |
| Cutting range 90° round | 540 mm |
| Cutting range 90° flat | 630 x 540 mm |
| Smallest dimension to be sawn round | 20 mm |
| Smallest dimension to be sawn flat | 20 x 15 mm |
| Performance Characteristics | |
| Feeding length single stroke | 500 mm |
| Drive power | 22 kW |
| Blade speed | 300 – 1,300 m/min |
| Saw blade dimensions | 7,500 x 34 x 1.1 mm |
| Rest piece length in automatic operation | 50 mm |
| Total power | 29 kW |
| Saw feed | servo-feed via ball screw |
| Material feed | ball screw |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 2,650 mm |
| Width | 4,385 mm |
| Height | 2,700 mm |
| Weight | 5.200 kg |
| Material support height | 800 mm |
