Bandsaw Machine HBM800-1201ALU Performance Automatic BEHRINGER

The BEHRINGER HBM800-1201ALU Performance Automatic Bandsaw Machine is engineered for precision and efficiency in aluminum cutting applications. With advanced automation technology and robust construction, this machine ensures exceptional reliability and performance.

Description

HBM800-1201ALU Performance Automatic

The HBM800-1201ALU aluminum bandsaw is specifically engineered for cutting aluminum ingots and billets, as well as similar non-ferrous metals like magnesium. Delivering swift, reliable, and precise cuts with minimal kerf, it promotes future-proof and resource-saving production practices.

Production band saw HBM800-1201ALU

HBM High-Performance Aluminium Sawing Unit

The HBM high-performance aluminum sawing unit delivers precision and efficiency in cutting aluminum and similar non-ferrous metals. With advanced features and robust construction, this unit ensures swift and accurate cuts, contributing to optimized production processes.

HBM high-performance aluminium sawing unit 3

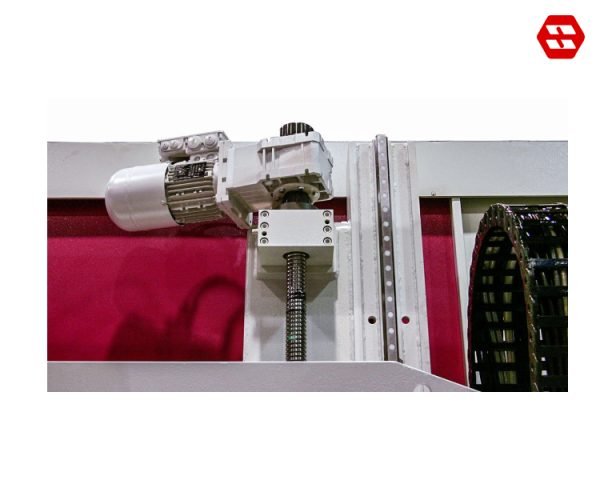

Servo Feed System For Short Non-Productive Times

The servo feed system minimizes downtime by swiftly transitioning between cutting tasks, enhancing overall productivity.

Servo feed system for short non-productive times 3

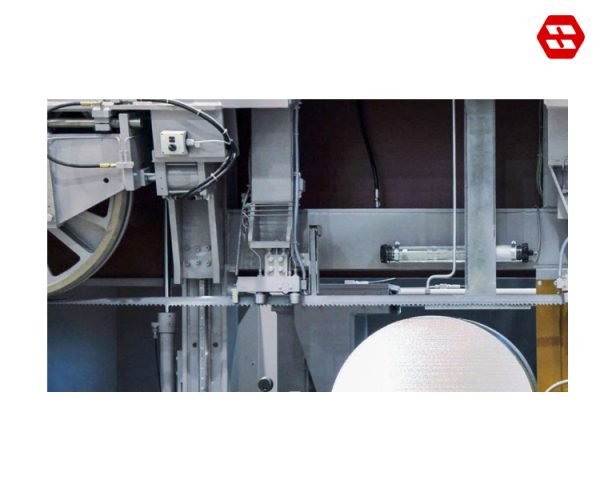

Roller Band Guides With Integrated Spray Lubrication

Ensure precise guidance of the saw band even at extremely high blade speeds. For a long service life, the bearings of the rollers are centrally lubricated by an automatic lubrication system.

Roller band guides with integrated spray lubrication 3

Features of The Production Bandsaw HBM800-1201ALU

Optimum Chip Disposal.

Highest cutting performance requires high standards of chip disposal. The wide, funnel-shaped machine base allows chips to fly freely into the chip conveyor with integrated coolant tank below.

Precision Portal-Design Guide System.

The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

Prepared For Automation.

A powerful machine concept puts high demands on material handling. The production band saws of the HBM series are often configured as automated sawing systems.

Servo Downfeed System.

The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.

Automatic Guide Arm.

Optimum sawing result without any adjustments - even with frequently changing material sizes.

Cast Iron Band Guiding Parts.

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

1° Inclination of The Saw Band.

Simplifies sawing in and out of wide flat materials and reduces burr formation.

Economical Use of Carbide Saw Blades.

Due to robust design, use of latest servo technology and well dimensioned chip disposal.

Technical Data Production Bandsaw HBM800-1201ALU

Cutting Range
Cutting range 90° round800 mm
Cutting range 90° flat1,200 x 800 mm
Smallest dimension to be sawn round50 mm
Smallest dimension to be sawn flat50 x 50 mm
Performance Characteristics
Feeding length single stroke600 mm
Drive power22 kW
Blade speed250 – 1,500 m/min
Saw blade dimensions10,220 x 41 x 1.3 mm
Rest piece length in automatic operation100 mm
Total power33 kW
Saw feedservo-feed via ball screw
Material feedball screw
Material clampinghydraulic
Saw blade cleaningelectrically driven chip brush
Dimensions and Weight
Length2,900 mm
Width6,000 mm
Height3,000 mm
Weight7.300 kg
Material support height800 mm
