Bandsaw Machine Metal Cutting HBE1060 BEHRINGER

The Behringer HBE1060 is a state-of-the-art bandsaw machine engineered for precision metal cutting with exceptional efficiency. Designed with a robust frame and advanced features, it excels in handling various grades of solid metals and large pipes. Equipped with a powerful cutting system, intuitive controls, and optional servo feed technology, the HBE1060 ensures smooth and accurate cuts, making it ideal for single cuts or complex material geometries.

Description

Metal Cutting HBE1060

The HBE1060 stands as a contemporary, semi-automatic high-performance horizontal bandsaw, boasting a robust design tailored for cost-effective cutting of solid metals across all grades and large pipes. Particularly beneficial for single cuts or challenging material geometries, optimal part positioning via crane or roller conveyor and line laser guidance is recommended.

Horizontal bandsaw HBE1060

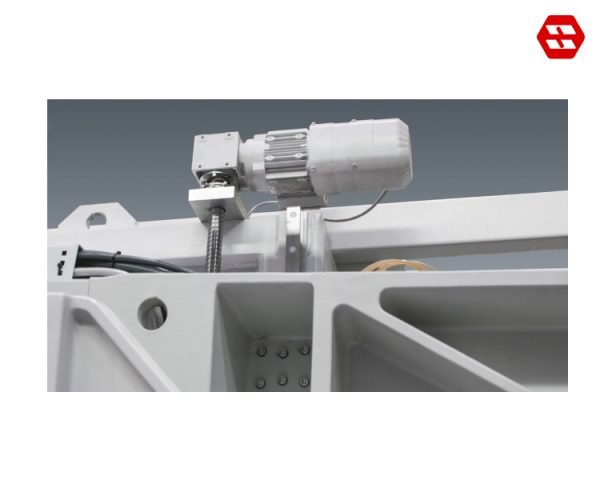

Servo Feed System With Cutting Pressure Control

The servo feed system with cutting pressure control is an advanced technology integrated into machinery, particularly bandsaws, to optimize cutting performance. By employing servo motor-driven feed mechanisms and sophisticated pressure control algorithms, this system ensures precise and efficient material cutting.

Servo feed system with cutting pressure control 2

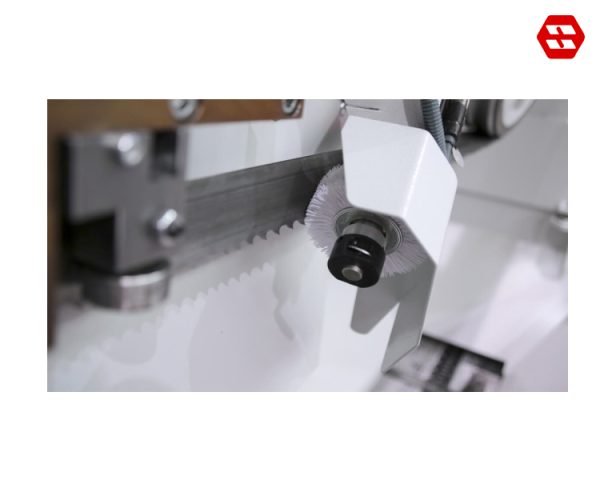

Electrically Driven Chip Brush

With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

Electrically driven chip brush13

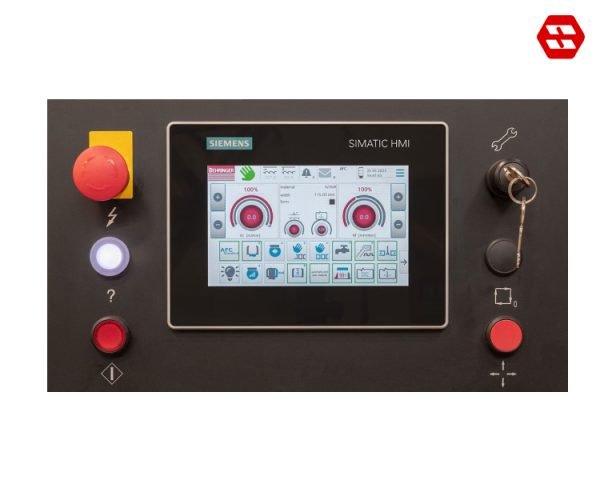

Intuitive BehrCtrl10 Touch Control

The Intuitive BehrCtrl10 touch control is a cutting-edge interface designed to streamline operation and enhance user experience in machinery and equipment.

Intuitive BehrCtrl10 touch control 10

Features of The Metal Cutting Bandsaw HBE1060

Sensitive BEHRINGER Cutting Pressure Control.

Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.

Precision Portal-Design Guide System.

The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

Double Clamping Vice.

Is ideal for clamping single cuts. The clamping jaws are arranged on both sides of the saw band. When setting up, the material can simply be aligned with the blade.

Cast Iron Band Guiding Parts.

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Automatic Guide Arm.

Optimum sawing result without any adjustments - even with frequently changing material sizes.

Servo Downfeed System.

The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.

Energy Efficient.

The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

Technical Data Metal Cutting Bandsaw HBE1060

Cutting Range
Cutting range 90° round1,060 mm
Cutting range 90° flat1,060 x 1,060 mm
Smallest dimension to be sawn round60 mm
Smallest dimension to be sawn flat60 x 20 mm
Performance Characteristics
Drive power5.5 kW
Blade speed10 – 110 m/min
Saw blade dimensions9,875 x 67 (80) x 1.6 mm
Rest piece length40 mm
Total power12 kW
Dimensions and Weight
Length2,000 mm
Width4,800 mm
Height3,550 mm
Weight9,000 kg
Material support height800 mm
