Bandsaw Machine Metal Cutting HBE420-723 BEHRINGER

The Behringer HBE420-723 is a high-performance, semi-automatic bandsaw machine designed for precision metal cutting. Engineered to meet the demands of a wide range of industrial applications, this robust machine offers superior cutting efficiency, accuracy, and durability.

Description

Metal Cutting HBE420-723

The horizontal bandsaw HBE420-723 perfectly combines the advantages of modern high-performance machines for individual sawing tasks with proven, unique BEHRINGER features. With its extensive range of applications, it reliably covers all the requirements of small and medium-sized workshops.

Metal cutting bandsaw HBE420-723 2

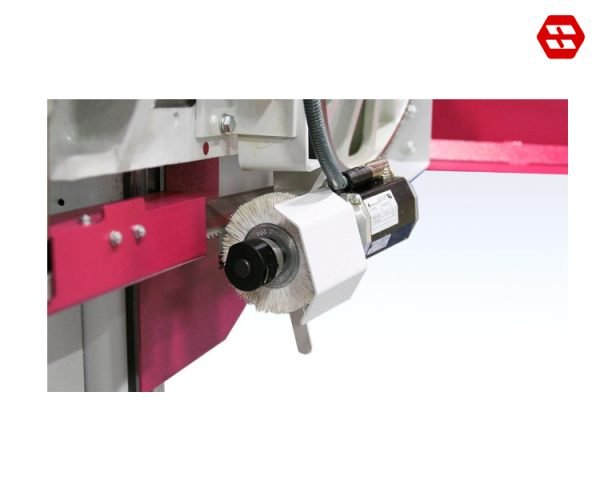

Electrically Driven Chip Brush

With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

Electrically driven chip brush 8

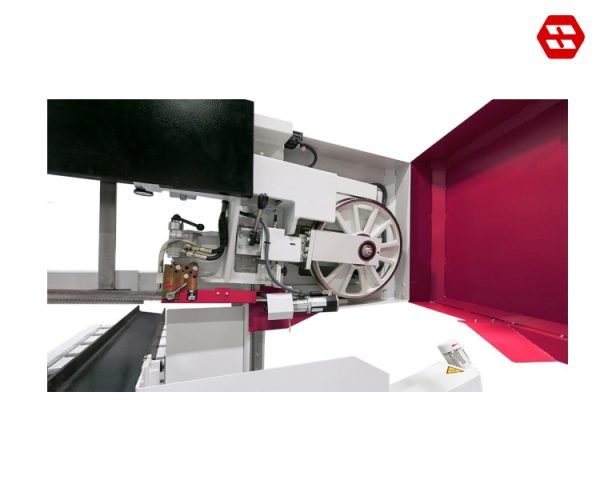

Cast Iron Band Guiding Parts

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Cast iron band guiding parts 6

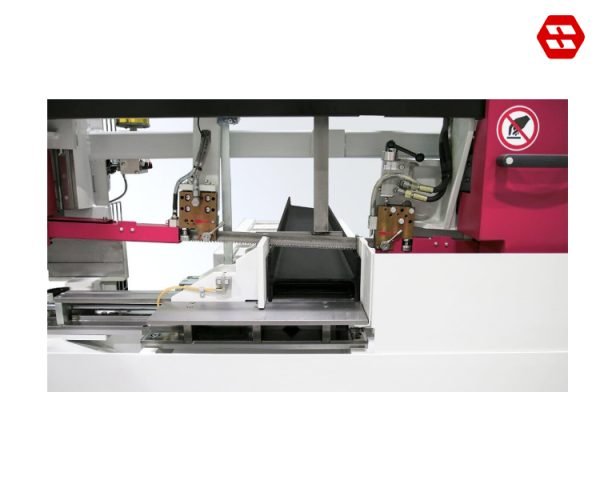

Double Clamping Vice of The Horizontal Bandsaw

Is ideal for clamping single cuts. The clamping jaws are arranged on both sides of the saw band. When setting up, the material can simply be aligned with the blade.

Double clamping vice of the horizontal bandsaw

Features of The Metal Cutting Bandsaw HBE420-723

Sensitive BEHRINGER Cutting Pressure Control.

Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.

Precision Portal-Design Guide System.

The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

Energy Efficient.

The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

Automatic Guide Arm.

Optimum sawing result without any adjustments - even with frequently changing material sizes.

Technical Data Metal Cutting Bandsaw
HBE420-723

Cutting Range
Cutting range 90° round420 mm
Cutting range 90° flat700 x 400 mm
Smallest dimension to be sawn round10 mm
Smallest dimension to be sawn flat10 x 8 mm
Performance Characteristics
Drive power5.2 kW
Blade speed15 – 130 m/min
Saw blade dimensions6,840 x 41 x 1.3 mm
Rest piece length40 mm
Total power11 kW
Dimensions and Weight
Length1,230 mm
Width3,220 mm
Height2,500 mm
Weight2.500 kg
Material support height800 mm
