Bandsaw Machine Metal Cutting HBE860 BEHRINGER

The Behringer HBE860 is a powerful and versatile bandsaw machine tailored specifically for precision metal cutting applications. With its robust construction and advanced features, it excels in handling a wide range of metals, including steel, aluminum, and alloys.

Description

Metal Cutting HBE860

The HBE860 represents a contemporary, semi-automatic horizontal bandsaw designed for high-performance metal cutting in a robust framework, catering to the economical processing of solid metals across various grades and large pipes.

Horizontal bandsaw HBE860

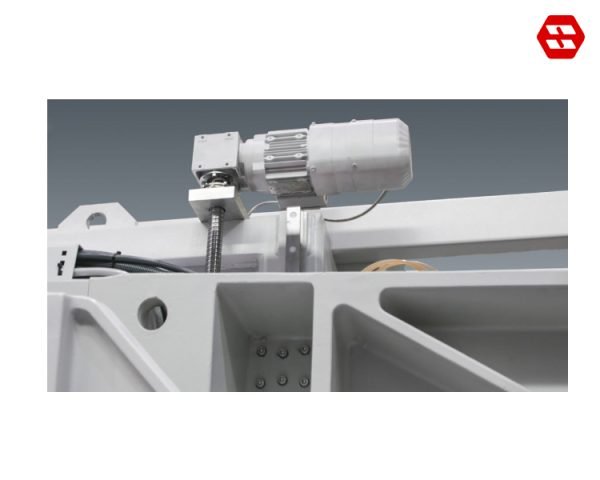

Servo Feed System With Cutting Pressure Control

The servo feed system with cutting pressure control is an advanced technology integrated into machinery, particularly bandsaws, to optimize cutting performance. By employing servo motor-driven feed mechanisms and sophisticated pressure control algorithms, this system ensures precise and efficient material cutting.

Servo feed system with cutting pressure control 2

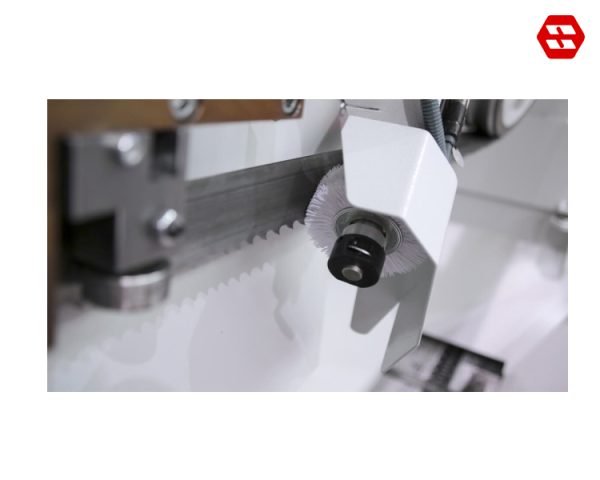

Electrically Driven Chip Brush

With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

Electrically driven chip brush 12

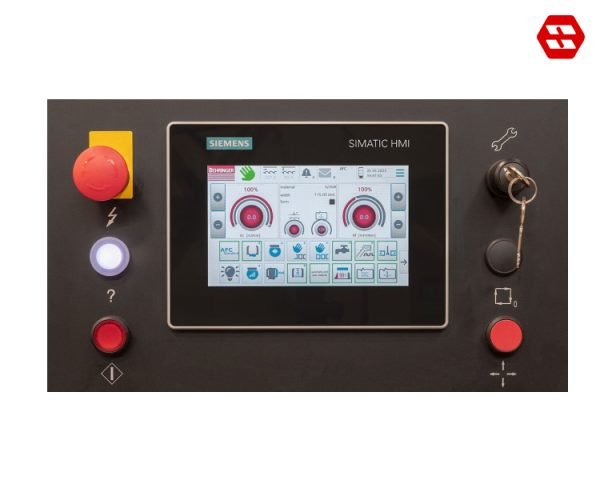

Intuitive BehrCtrl10 Touch Control

The Intuitive BehrCtrl10 touch control is a cutting-edge interface designed to streamline operation and enhance user experience in machinery and equipment.

Intuitive BehrCtrl10 touch control 9

Features of The Metal Cutting Bandsaw HBE860

Sensitive BEHRINGER Cutting Pressure Control.

Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.

Precision Portal-Design Guide System.

The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

Double Clamping Vice.

Is ideal for clamping single cuts. The clamping jaws are arranged on both sides of the saw band. When setting up, the material can simply be aligned with the blade.

Cast Iron Band Guiding Parts.

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Automatic Guide Arm.

Optimum sawing result without any adjustments - even with frequently changing material sizes.

Servo Downfeed System.

The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.

Energy Efficient.

The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

Technical Data Metal Cutting Bandsaw HBE860

Cutting Range
Cutting range 90° round860 mm
Cutting range 90° flat860 x 860 mm
Smallest dimension to be sawn round20 mm
Smallest dimension to be sawn flat20 x 20 mm
Performance Characteristics
Drive power5.5 kW
Blade speed10 – 110 m/min
Saw blade dimensions9,875 x 67 (80) x 1.6 mm
Rest piece length40 mm
Total power12 kW
Dimensions and Weight
Length2,000 mm
Width4,800 mm
Height3,550 mm
Weight8,500 kg
Material support height800 mm
