Description
Mitre Saw SLB230DG-HA
The BEHRINGER Swing Frame SLB230DG-HA Bandsaw Machine, a dependable mitre saw from the SLB series, tailored for daily sawing tasks in workshops and factories. Designed to cut tubes, profiles, and solid materials made of metal and similar plastics, its precision, performance, and reliability complement its attractive price point.
Saw Band Tensioning
The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically. In order to prevent overloading during the sawing process, the pressure is equalized by means of a pretensioned disc spring package. In the event of a band break, the sawing machine switches off automatically.

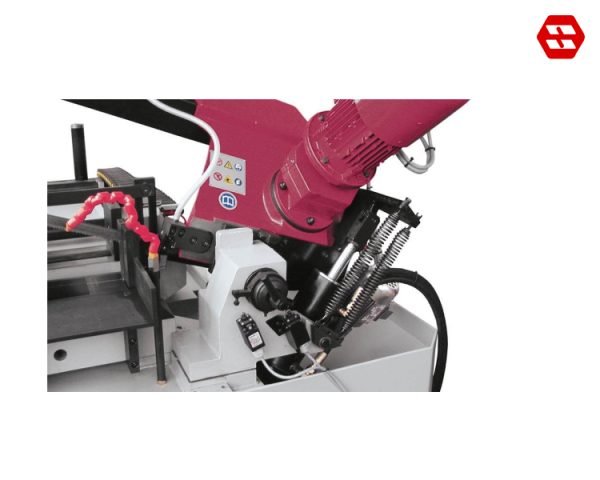

Hydraulic Saw Feed
The saw feed is hydraulically controlled with an infinitely adjustable feed rate. The lifting and lowering of the saw frame is controlled by push buttons.

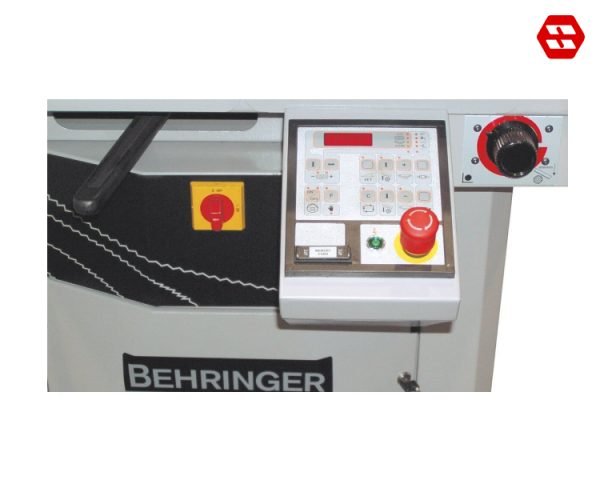

Control Panel
The Control Panel, an intuitive interface designed to streamline operation and control of industrial machinery, ensuring efficient performance and ease of use.
Features of The Mitre Saw SLB230DG-HA
Frequency-Controlled Saw Drive.
Offers maximum flexibility when sawing different material grades stainless steel or aluminum. The cutting speed can be adjusted infinitely variable.
Precise Band Guides.
Combination of roller and carbide guide of the saw band. Adjustment of the movable band guide according to the cutting width.
Saw Band Tensioning.
The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically.

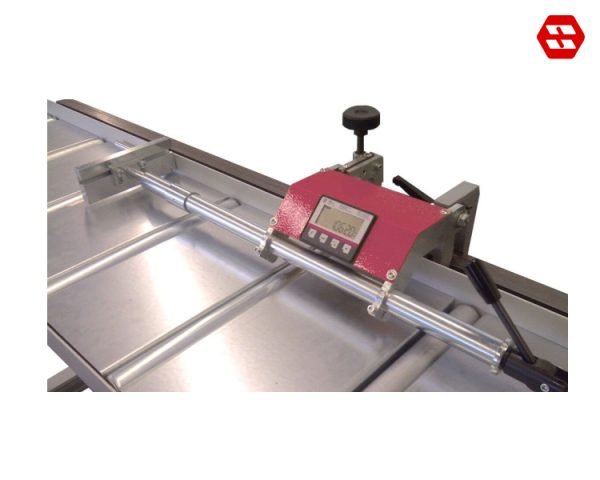

Standard Measuring Stop.
with millimeter scale up to 600 mm.
Material Handling from a Single Source.
The swing frame bandsaw machines of the SLB series can be perfectly tailored to your application with roller conveyors and measuring devices.
Hydraulic Saw Feed.
The saw feed is hydraulically controlled with an infinitely adjustable feed rate. The lifting and lowering of the saw frame is controlled by push buttons.
Robust Material Vice.
The material is clamped using a manual vice with a quick-release lever.
Semi-Automatic Sawing Cycle.
After inserting the material, all it takes is a push of a button and the machine performs an automatic sawing cycle: clamp the material, saw, unclamp, lift the saw frame.
Miter Adjustment.
The miter angle can be adjusted to one side. The saw frame is locked by means of a quick-release clamp.
Coolant System.
The machine is equipped with 2 regulated coolant nozzles. The coolant tank can be removed for easy cleaning.
Technical Data Mitre Saw SLB230DG-HA
| Cutting Range | |
| Cutting range 90° round | 240 mm |
| Cutting range 90° flat | 310 x 200 mm |
| Cutting range 90° flat | 270 x 240 mm |
| 45° Miter right round | 175 mm |
| 45° Miter right flat | 170 x 170 mm |
| 45° Miter right upright | 155 x 240 mm |
| 30° Miter right round | 110 mm |
| 30° Miter right flat | 105 x 105 mm |
| 30° Miter right upright | 100 x 140 mm |
| 45° Miter left round | 150 mm |
| 45° Miter left square | 135 x 135 mm |
| 45° Miter left flat | 145 x 125 mm |
| 45° Miter left upright | 65 x 240 mm |
| Smallest dimension to be sawn round | 10 mm |
| Smallest dimension to be sawn flat | 10 x 6 mm |
| Performance Characteristics | |
| Drive power | 1.1 kW |
| Blade speed | 16 – 120 m/min |
| Saw blade dimensions | 2,700 x 27 x 0.9 mm |
| Dimensions and Weight | |
| Length | 1,600 mm |
| Width | 840 mm |
| Height | 1,900 mm |
| Weight | 490 kg |
| Material support height | 990 mm |
