Description

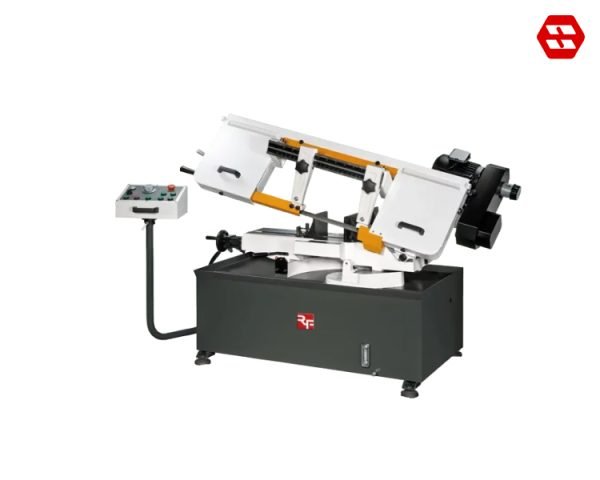

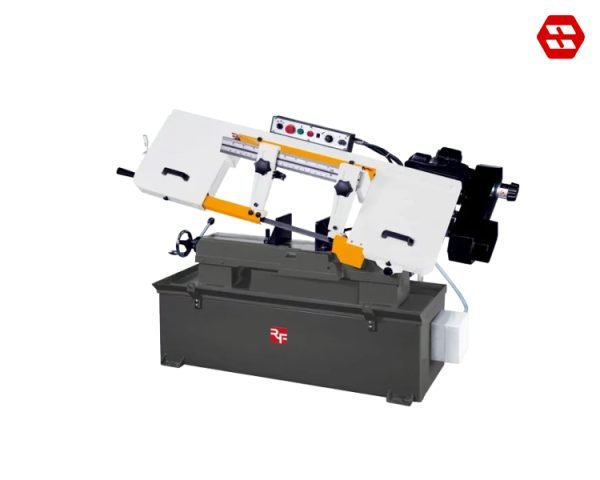

10” X 18” Step Pulley Metal Bandsaw RF-1018S
Featuring user-friendly controls and a durable bi-metal blade, the RF-1018S delivers consistent and accurate cuts, making it an essential asset for any cutting project requiring reliability and precision.
Cutting Capacity
Choose the right bandsaw for your needs based on its cutting capacity.
Features
Table Specifications
| Item | RF-1018S | RF-1018SV | RF-1018SRV |
|---|---|---|---|
| Main Motor HP | 2 | 2 | 2 |
| Speed MT/min | 60HZ / 35-60-88-115 50HZ / 29-50-73-96 | 60HZ / 22~95 | 60HZ / 22~95 |
| Speed Ft/min | 60HZ /114-196-288-377 50HZ /95-164-239-314 | 60HZ / 73~312 | 60HZ / 73~312 |
| Saw Blade mm (WxTxL) | 27×0.9×3090 | 27×0.9×3090 | 27×0.9×3090 |
| Saw Blade inch (WxTxL) | 1.06×0.035×121.66 | 1.06×0.035×121.66 | 1.06×0.035×121.66 |
| Machine Dimensions mm (LxWxH) | 1720x620x1055 | 1720x620x1055 | 1720x650x1100 |
| Machine Dimensions inch (LxWxH) | 67.7×24.4×41.5 | 67.7×24.4×41.5 | 68.9X25.6X40.3 |
| Packing Dimensions mm (LxWxH) | 1790x670x1155 | 1790x670x1155 | 1790X740X1145 |
| Packing Dimensions inch (LxWxH) | 70.5×26.5×45.5 | 70.5×26.5×45.5 | 70.5X29X45 |
| Machine Weight NW/GW | 320 / 350 kgs 706 / 772 lbs | 320 / 350 kgs | 380 / 420 kgs |
| No.of Machines Packed in 20″ container | 9 sets / SKD 24 sets | 9 sets / SKD 24 sets | 9 sets / SKD 18 sets |
