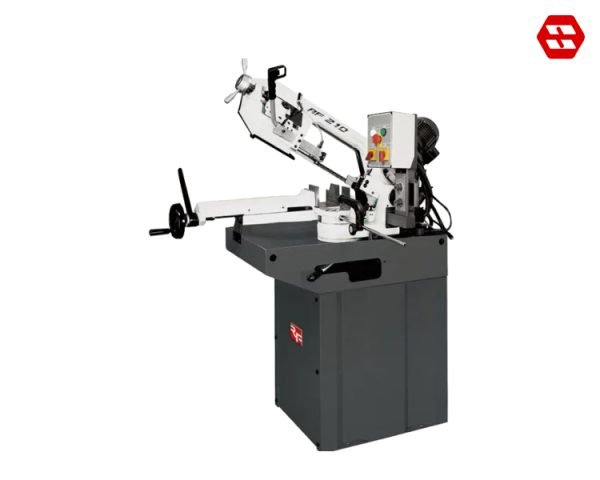

Bandsaw Machine RF-210 RongFu

The RF-210, a versatile 7” metal band saw engineered for precision cutting. medium sized workshop bandsaw with variable speed control & excellent cutting capability for cutting various types of pipe & bar efficiently.

Description

7″ Metal Bandsaw RF 712

With its compact design and durable construction, this saw is an essential tool for any workshop looking to achieve clean and accurate cuts in metal materials. Perfect for both professional and hobbyist metalworkers.

RF-210 (1)

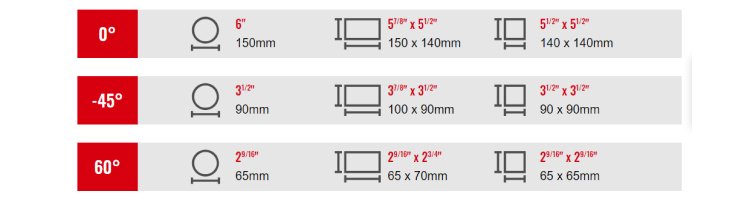

Cutting Capacity

Choose the right bandsaw for your needs based on its cutting capacity.

Cutting Capacity Rf210

Features

R-210

Cutting Angle From 0º – 60º.
Adjustable Blade Guide for High Precision & Long Blade Life.
Stand Designed with Water Pan for Collecting Chip & Water.
Coolant System for Wet Cutting.
Comes with Bi-metal Blade, Chip Brush, & Length Stop Set.
Optional HB System, Dual Function for Manual & Hydraulic Down Feed Selection.

RF-210SV

Fully Adjustable Downfeed Control.
DC Variable Speed Control.

RF-210S

Fully Adjustable Downfeed Control.

RF210V

DC Variable Speed Control.

Table Specifications

Item RF-210 / 210V RF-210S RF-210SV
Main Motor HP 1(1-phase) 1(3-phase) 1(1-phase) 1(3-phase) 1(1-phase) 1(3-phase)
Variable Speed MT/min 28-110 28-110 28-110 28-110 28-110 28-110
Variable Speed Ft/min 92-360 92-360 92-360 92-360 92-360 92-360
Feedrate MT/min 60HZ /95 50HZ /80 60HZ /48-96 50HZ /40-80 60HZ /95 50HZ /80 60HZ /48-96 50HZ /40-80 60HZ /95 50HZ /80 60HZ /48-96 50HZ /40-80
Feedrate Ft/min 60HZ /310 50HZ /260 60HZ /157-314 50HZ /130-260 60HZ /310 50HZ /260 60HZ /157-314 50HZ /130-260 60HZ /310 50HZ /260 60HZ /157-314 50HZ /130-260
Saw Blade mm (WxTxL) 20×0.9×2085 20×0.9×2085 20×0.9×2085
Saw Blade inch (WxTxL) 0.8×0.035×82.1 0.8×0.035×82.1 0.8×0.035×82.1
Machine Dimensions mm (LxWxH) 1280x510x1370 1280x510x1370 1280x510x1370
Machine Dimensions inch (LxWxH) 50.4x20x54 50.4x20x54 50.4x20x54
Packing Dimensions mm (LxWxH) 1155x720x925 SKD 1130x584x673 1155x720x925 SKD 1130x584x673 1155x720x925 SKD 1130x584x673
Packing Dimensions inch (LxWxH) 45.5×28.5×36.4 SKD 45.5x23x26.5 45.5×28.5×36.4 SKD 45.5x23x26.5 45.5×28.5×36.4 SKD 45.5x23x26.5
Machine Weight NW/GW 190/210 kgs 419/463 lbs 180/200 kgs 397×441 lbs 180/200 kgs 397×441 lbs
No.of Machines Packed in 20″ container 30 sets / SKD 54 sets 30 sets / SKD 54 sets 30 sets / SKD 54 sets
