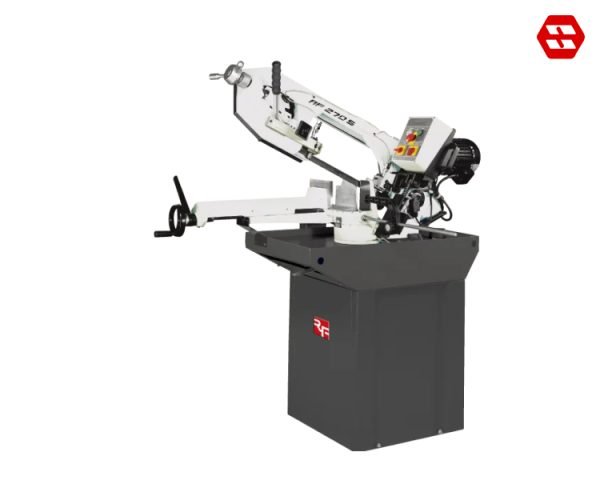

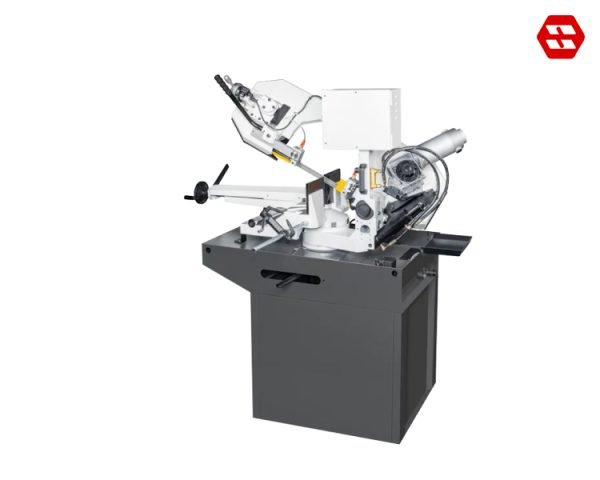

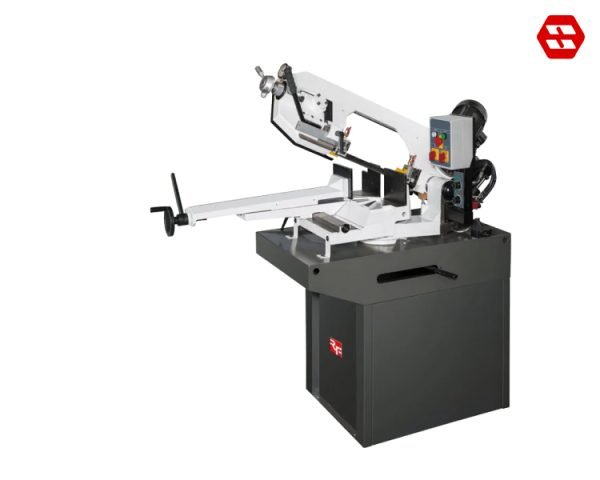

Bandsaw Machine RF-270 RongFu

The RF-270 RongFu Bandsaw Machine is a reliable and compact cutting tool, ideal for both professional workshops and hobbyists. Engineered for precision, it effortlessly handles a variety of materials including metal, plastic, and wood. Medium sized workshop bandsaw with angled cutting capability & upgrade option for cutting various types of pipe & bar efficiently.

Description

9” 2 Speed Metal Bandsaw RF-270

The RF-270 delivers consistent and accurate cuts, making it an indispensable addition to any workshop or DIY enthusiast's toolkit.Engineered for precision, it effortlessly handles a variety of materials including metal, plastic, and wood.

RF-270 (1)

Cutting Capacity

Choose the right bandsaw for your needs based on its cutting capacity.

Cutting Capacity RF-270

Features

RF-270

Cutting Angle From 0º – 60º.
Adjustable Blade Guide for High Precision & Long Blade Life.
Stand Designed with Water Pan for Collecting Chip & Water.
Coolant System for Wet Cutting.
Comes with Bi-metal Blade, Chip Brush, & Length Stop Set.
Hydraulic Tension Meter for Precise Control.

RF-270SV

DC Variable Speed Control.

RF-270DR

DC Variable Speed Control.
+60º-45º Cutting.

Table Specifications

ItemRF-270SRF-270 / 270 VRF-270DRRF-270DRV
Main Motor HP1.5(1-phase)1.5(3-phase)1.5(1-phase)1.5(3-phase)1.5 (1 or 3-phase)1.5 (1 or 3-phase)
Variable Speed MT/min28-11028-110
Variable Speed Ft/min92-36092-360
Feedrate MT/min60HZ / 106
50HZ / 88
60HZ / 42-84
50HZ / 35-70
60HZ / 106
50HZ / 88
60HZ / 42-84
50HZ / 35-70
60HZ / 42, 84
60HZ / 28, 110
Feedrate Ft/min60HZ / 347
50HZ / 289
60HZ / 138-276
50HZ / 115-230
60HZ / 347
50HZ / 289
60HZ / 138-276
50HZ / 115-230
60HZ / 138, 276
60HZ / 90, 360
Saw Blade mm (WxTxL)0.9x27x2450x5/8T0.9x27x2450x5/8T0.9x27x2450x5/8T0.9x27x2450x5/8T
Saw Blade inch (WxTxL)1.06×00.35×96.46×5/8T1.06×00.35×96.46×5/8T1.06×00.35×96.46×5/8T1.06×00.35×96.46×5/8T
Machine Dimensions mm (LxWxH)1280x510x13701350x700x13261350x700x13261350x700x1326
Machine Dimensions inch (LxWxH)56x20x54.353.15×27.56×52.253.15×27.56×52.253.15×27.56×52.2
Packing Dimensions mm (LxWxH)1300x640x950
SKD 1283x737x673
1494x787x9781490x787x9781490x787x978
Packing Dimensions inch (LxWxH)51x25x37.5
SKD 50.5x29x26.5
58.8x31x38.558.8x31x38.558.8x31x38.5
Machine Weight NW/GW205 / 225 kgs
452 / 496 lbs
220 / 240 kgs
485 / 529 lbs
320 / 355 kgs
704 / 781 lbs
320 / 355 kgs
704 / 781 lbs
No.of Machines
Packed in 20″ container
26 sets / SKD 38 sets26 sets / SKD 38 sets48 sets48 sets
