Circular Saw Machine High Speed HCS 90 E BEHRINGER

The Circular Saw Machine High Speed HCS 90 E by BEHRINGER redefines efficiency and precision in metal cutting. Engineered for high-speed operation, this machine is tailored for businesses seeking to enhance productivity without compromising on cut quality.

Description

High Speed Circular Saw HCS 90 E

Featuring a robust design and advanced technology, it effortlessly handles demanding cutting tasks, delivering clean, accurate cuts at remarkably fast speeds. Ideal for a wide range of applications, from fabrication to manufacturing, the HCS 90 E sets the standard for high-performance metal cutting.

High speed circular saw HCS 90 E

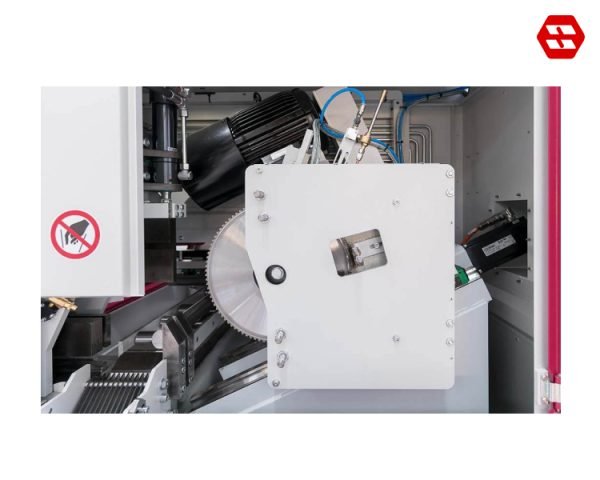

HCS Saw Blade Guide

The HCS Saw Blade Guide is a pivotal component designed to enhance precision and stability in cutting operations. Crafted with meticulous attention to detail, this guide ensures the saw blade operates with optimal alignment, significantly reducing vibrations and enhancing cut quality.

HCS saw blade guide

Stable,Low-Vibration Gearbox

Our machinery is equipped with a Stable, Low-Vibration Gearbox, designed to enhance both performance and precision in demanding industrial environments. This advanced gearbox minimizes vibrations significantly, ensuring smoother operations and higher quality cuts with reduced noise levels.

Stable, low-vibration gearbox

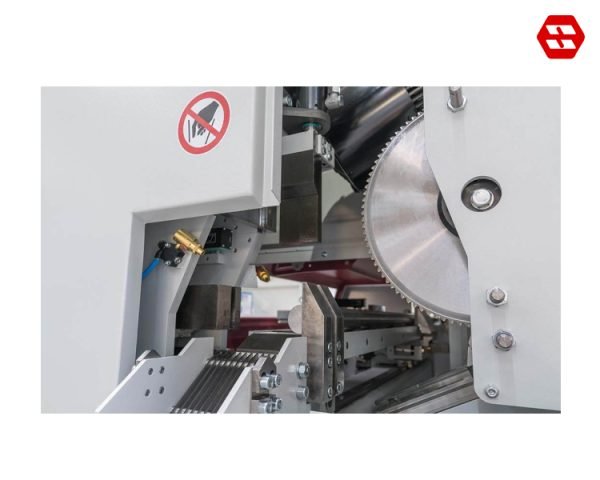

3-Point Material Clamping

The 3-Point Material Clamping system offers superior stability and precision for cutting operations. Designed to securely hold materials in place from three different points, this system ensures a firm grip, minimizing movement and vibration during cutting.

3-point material clamping

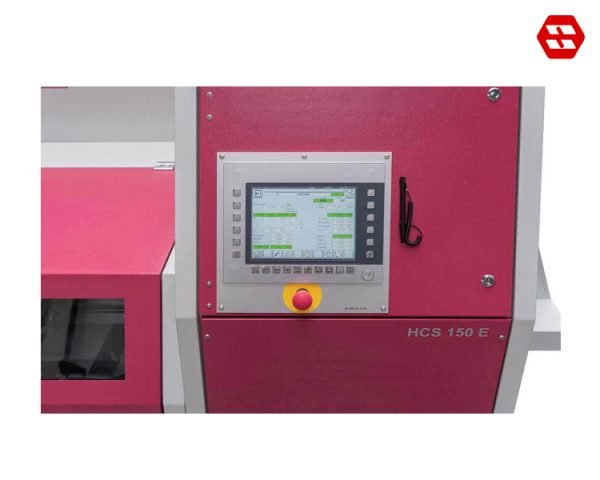

Powerful Control of The Industrial Circular Saw

Experience unmatched precision and efficiency with the Powerful Control system of our Industrial Circular Saw. Engineered to deliver comprehensive command over cutting operations, this advanced control system allows for intricate adjustments and real-time monitoring, ensuring optimal performance.

Powerful control of the industrial circular saw

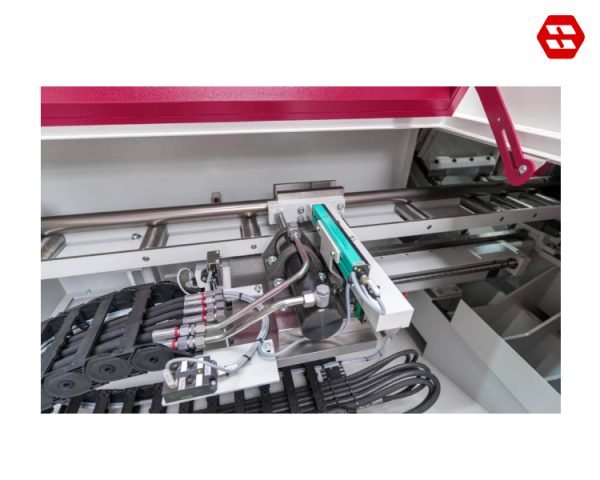

Servo-Driven Feeding Gripper

Swiftly positions the material precisely and in a matter of seconds. Its advantages are: accurate cutting length and short cycle times with tight tolerances.

Servo-driven feeding gripper 2

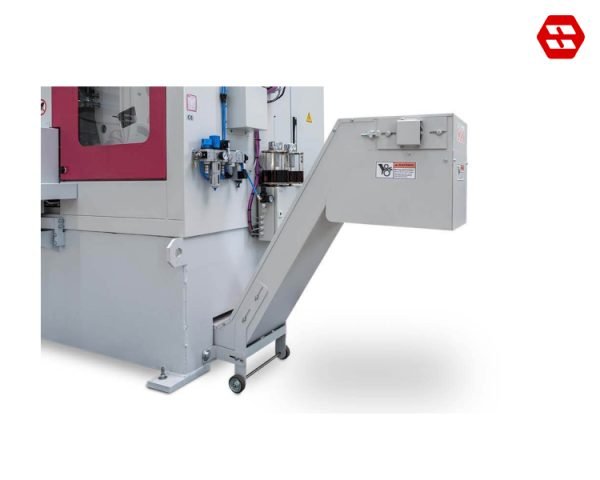

Chip Conveyor

The Chip Conveyor is an essential accessory for maintaining cleanliness and efficiency in metalworking environments. Designed to automatically remove and transport chips and debris away from the cutting area, it ensures a cleaner workspace and reduces downtime associated with manual cleaning.

Chip conveyor

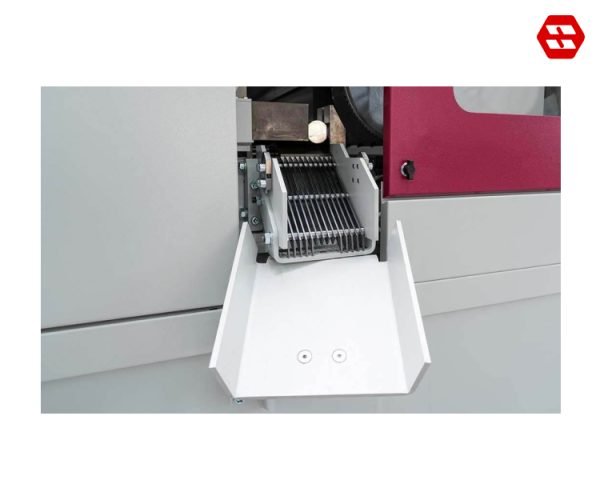

Sorting Switch

The Sorting Switch is a pivotal component in automated cutting systems, designed to enhance operational efficiency and accuracy. This innovative feature intelligently directs finished parts to designated locations, streamlining the sorting process and minimizing manual intervention.

Sorting switch

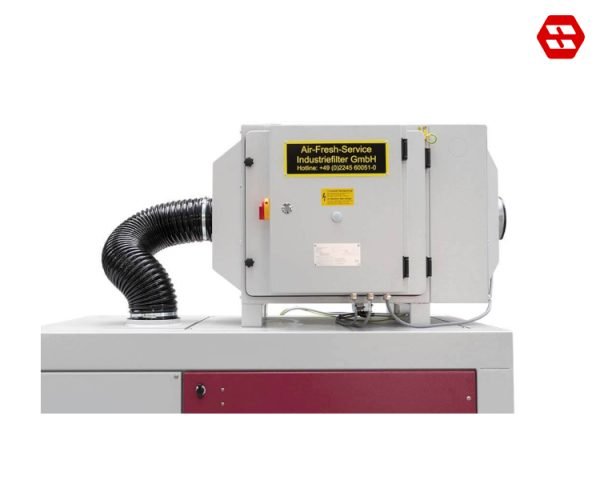

Spray Mist Extraction

The Spray Mist Extraction system is an advanced solution designed to improve air quality and safety in metalworking environments. This system efficiently removes airborne mist and particulates generated during cutting processes, ensuring a cleaner, healthier workspace.

Spray mist extraction

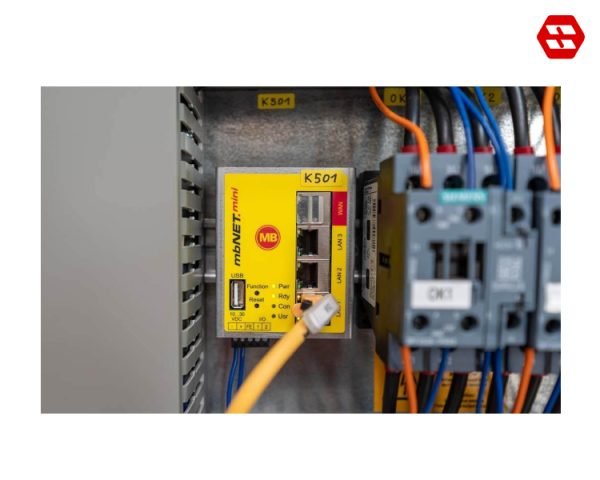

Remote Maintenance as Standard

Benefit from seamless equipment upkeep with Remote Maintenance as standard. This feature enables technicians to diagnose and troubleshoot machinery from afar, minimizing downtime and maximizing efficiency.

Remote maintenance as standard

Features of The High Speed Circular Saw HCS 90 E

Robust,Low-Vibration Gear Unit.

The heart of the saw unit is the worm gear unit, made by BEHRINGER EISELE. It is heavy duty and provides for a smooth, low-vibration running of the saw, which, of course, has a positive impact on the quality of the cutting surface and the blade life.

Funnel-Shaped Machine Base.

Provides a perfect chip flow into the chip conveyor as well as the speedy disposal of chips. Cleaning is extremely easy.

Short Cycle Times.

by electronic cutting height adjustment and rapid return of the saw blade.

Simple and Intuitive Operation of The Control Unit.

Everything under control! The control unit is self explanatory and easy to operate; operating mistakes are avoided and it allows for quick navigation within the program menu.

Linear Guided Saw Feed.

The saw unit is moved dynamically through the entire cutting area via two linear guides in conjunction with a ball screw and a servo motor.

Extremely Solid Construction.

The extremely stable and solid machine bed is the basis of every HCS high speed circular saw. It ensures excellent vibration damping and ideal power flow.

Cooling Systems.

The industrial circular saws of the HCS-E series are equipped with a micro-spray unit as standard. This ensures precise cooling and minimal lubrication of the tool.

Technical Data High Speed Circular Saw HCS 90 E

Cutting Range
Cutting range 90° round90 mm
Cutting range 90° square75 x 75 mm
Smallest dimension to be sawn round10 mm
Smallest dimension to be sawn square10 x 10 mm
Performance Characteristics
Drive power8 kW
RPM 20 – 250 min-1
Saw blade diameter250 / 285 / 315 mm
Feeding length single stroke1,000 mm
Feed rate1,250 mm/s
Saw feedservo-driven
Material clampinghydraulic
Saw drivefrequency-controlled
Dimensions and Weight
Length2,550 mm
Width1,900 mm
Height2,000 mm
Weight3,200 kg
Material support height1,170 mm
