Description
Cold Saw VMS 400 H
The VMS 400 H model offers high performance and reliability, equipped with advanced features to enhance productivity and accuracy in metal fabrication tasks.Classics in any workshop

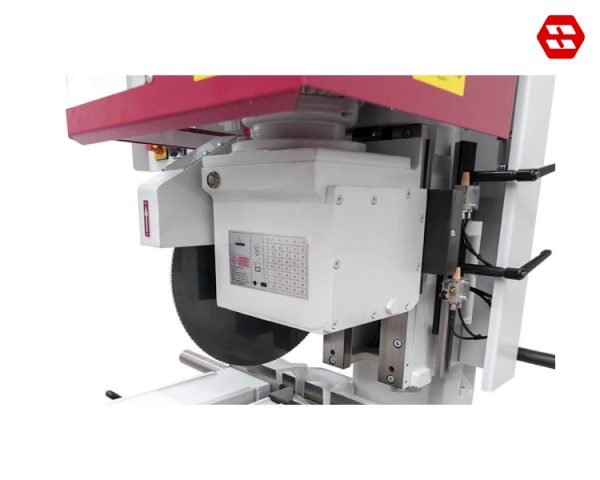

Worm Gearbox From Our Own Production
Our self-produced worm gearbox is a pinnacle of precision engineering and reliability. Crafted in-house with meticulous attention to detail, it offers exceptional performance and durability in various industrial applications.

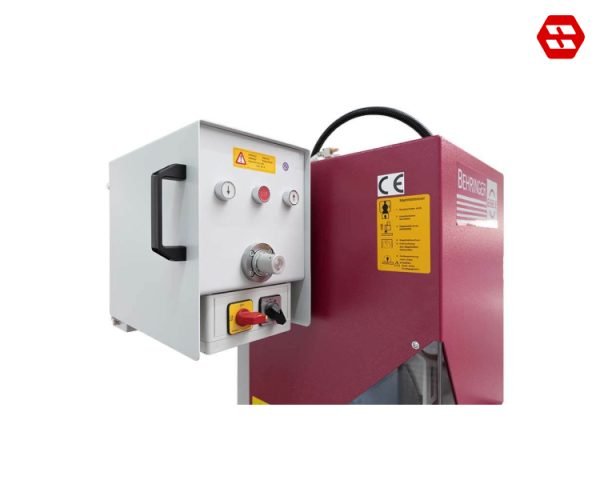

Hydro-Pneumatic Saw Feed
Hydro-pneumatic saw feed is an advanced system that combines hydraulic and pneumatic power to deliver smooth and precise motion control for industrial cutting machines.Ideal for various cutting tasks in metalworking and fabrication, hydro-pneumatic saw feed systems offer reliability and precision.

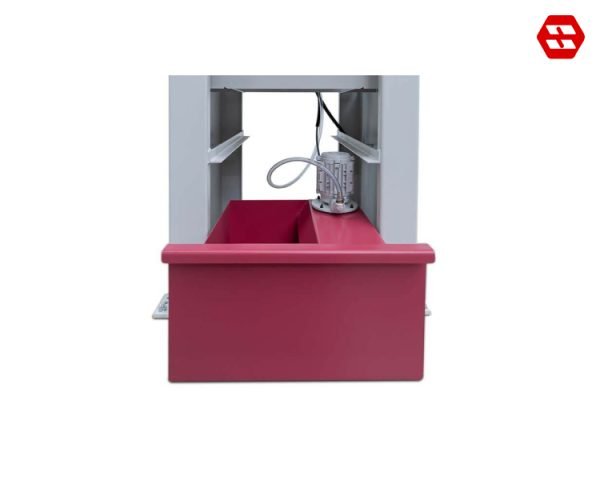

Coolant Device
A coolant device is a vital component in industrial machinery, particularly in metalworking equipment like saws and milling machines. Its primary function is to regulate and maintain the temperature of cutting tools and workpieces during the machining process.
Convenient Mitre Adjustment
Convenient mitre adjustment is a user-friendly feature designed to simplify the process of changing cutting angles on machinery such as saws. With this feature, operators can easily adjust the angle of the cutting blade to achieve precise mitre cuts without the need for complex manual adjustments or additional tools.

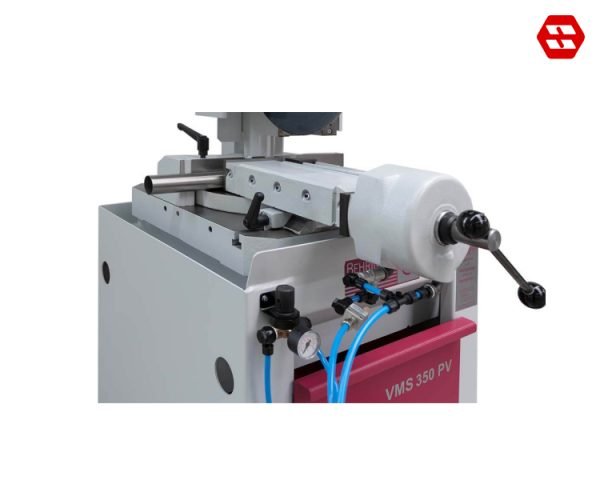

Pneumatic Quick Clamping Device
The pneumatic quick clamping device is a versatile and efficient tool used in industrial applications to swiftly and securely clamp workpieces. Powered by pneumatic pressure, this device enables rapid clamping and release, significantly reducing setup time and enhancing productivity.

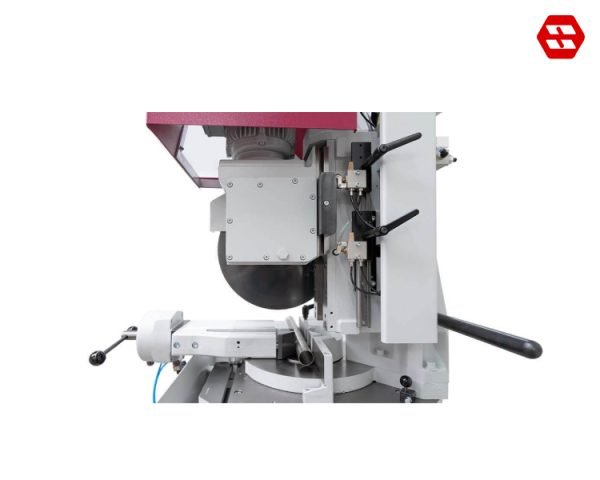

Convenient Stroke Adjustment of The Saw Blade
Convenient stroke adjustment of the saw blade is a user-friendly feature designed to simplify the process of setting the cutting depth or stroke of a saw blade.This enhances workflow efficiency and accuracy, making it ideal for professionals and hobbyists alike who require flexibility and ease of use in their cutting tasks.
Features of The Cold Saw VMS 370 PV
Hydraulic Saw Feed.
The semi-automatic model with hydraulic saw feed and hydraulic quick clamping device offers a high level of operating comfort as well as consistent cutting quality.
Comfortable Stroke Adjustment.
The entry and exit points of the saw blade can be conveniently adjusted using two limit switches.
Large Dimensioned Protective Cover.
Ensures an easy and quick saw blade change and a high level of safety during work.
Automatic Saw Feed.
The semi-automatic model with hydro-pneumatic saw feed and quick clamping device offers a high level of operating comfort as well as consistent cutting quality.
High Flexibility.
The cold saw VMS 350# can be flexibly adapted to your material flow.
Low Space Requirement.
High productivity with simultaneously compact dimensions of less than 1 m².
Worm Gear Unit With EISELE Shock-Absorbing Feature.
An ideally designed gearbox from our own production offers long blade life and maximum durability.
Clean Machine Design.
The coolant unit and the chip drawer are integrated into the machine base.
User Friendly Mitre Adjustment.
This allows changing mitre angles to be set precisely and quickly.
Technical Data Cold Saw VMS 400 H
| Cutting Range | |
| Flat 90° | 200 x 100 mm |
| Flat 45° | 140 x 120 mm |
| Flat 30° | 100 x 100 mm 1) |
| Square 90° | 120 mm |
| Square 45° | 120 mm |
| Square 30° | 100 mm 1) |
| Round 90° | 140 mm |
| Round 45° | 140 mm |
| Round 30° | 110 mm 1) |
| Performance Characteristics | |
| Drive power | 2.0 / 2.6 kW |
| RPM standard | 17 / 34 – 34 / 68 min-1 |
| RPM optional | 8 / 16 / 32 / 64 min-1 |
| Saw blade diameter | 400 mm |
| Saw feed | hydraulic |
| Material clamping | hydraulic |
| Dimensions and Weight | |
| Length | 945 mm |
| Width | 1,500 mm |
| Height | 2,130 mm |
| Weight | 750 kg |
| Material support height | 900 mm |
