Manual Bandsaw Machine PH 262-HB MEP

The small pull-down manual double mitering band sawing machine ideal for the cut of tubes and metal profiles and characterized by high performance. It can work with or without operator.

Description

Manual Bandsaw Machine PH 262-HB MEP

PH 262 HB, manual pull-down band sawing machine to cut metals mitering from -45° to +60°, can perform, in addition to manual cutting, even single cuts without operator.

PH-262-CAST-IRON STRUCTURE

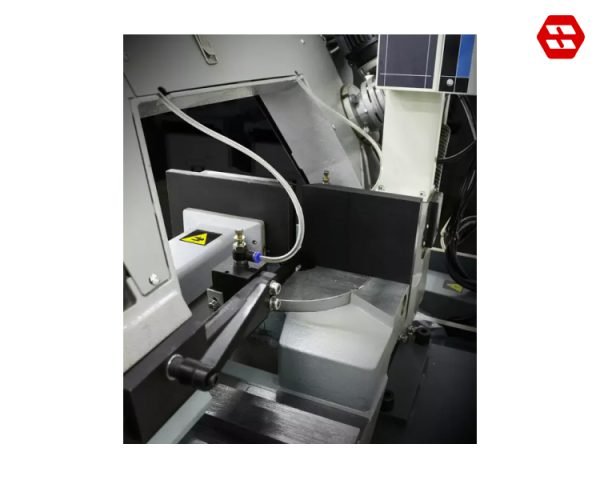

Cast Iron Structure

Cast-iron structure of the saw head, cutting table and vice to absorb vibration during the cut and ensure longer blade life.

PH-262-CAST-IRON STRUCTURE

Hard Metal Blade-Guide Pads

Adjustable and extremely wear-resistant hard metal blade-guide pads that ensure longer blade life and cuttting stability

PH-262-HARD METAL BLADE-GUIDE PADS

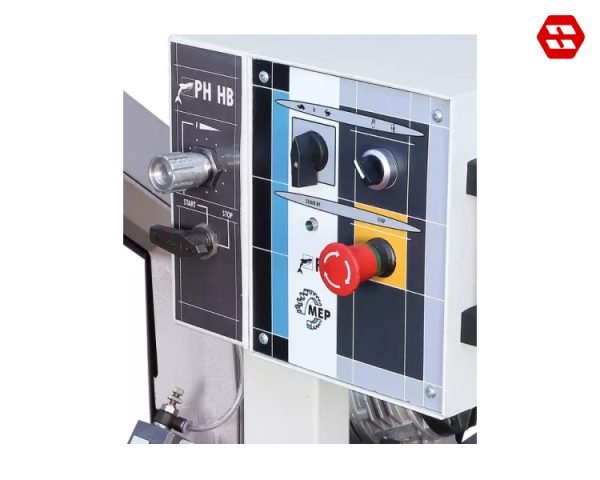

Optional HB-System

Saw head down feed rate by gravity through the HB system by which the cut is executed in automatic mode, once the operator starts the cycle.

PH-262-OPTIONAL HB SYSTEM

Technical Data Manual Bandsaw Machine
PH 262-HB MEP

CUTTING RANGE


225 mm200 mm240 x 160 mm
+45°160 mm140 mm155 x 115 mm
+60°90 mm90 mm90 x 90 mm
– 45°145 mm125 mm150 x 100 mm

PERFORMANCE CHARACTERISTICS

Max. vice opening 245 mm
Band size2450 x 27 x 0.9 mm
Blade motor power0.7 / 0.81 Kw – Three-phase
Blade rotation speed46 / 92 m/min – 2 Speeds
