Description
Manual Bandsaw Machine SHARK 281 CCS MEP
SHARK 281 CCS, manual pull-down band sawing machine to cut metals mitering from 0° to +60°, can also perform single cuts without operator.

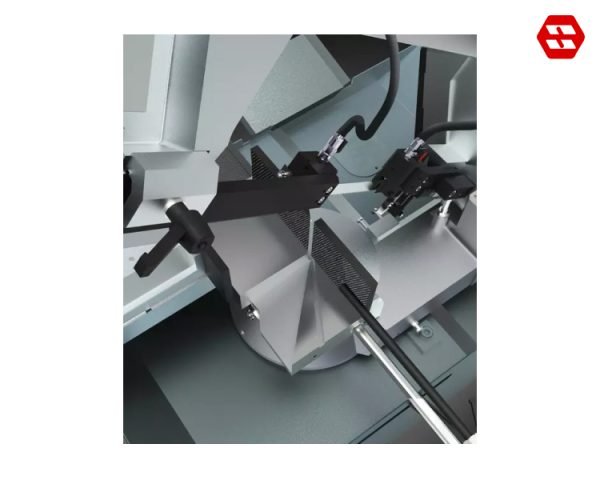

Cast-Iron Structure
Cast-iron structure of the saw head, cutting table and vice to absorb vibration during the cut and ensure longer blade life.

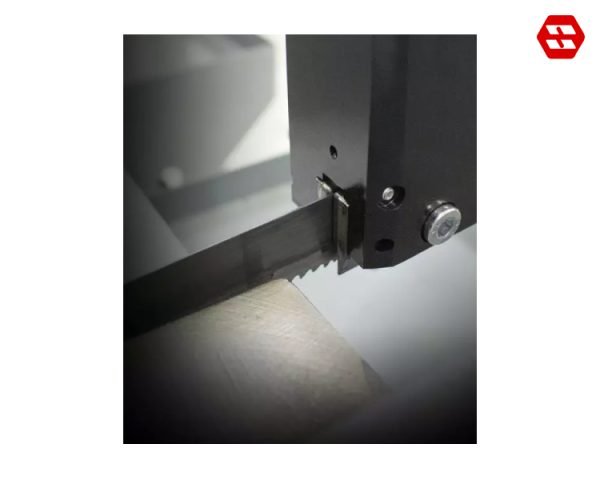

Hard Metal Blade-Guide Pads
Adjustable and extremely wear-resistant hard metal blade-guide pads that ensure longer blade life and cuttting stability

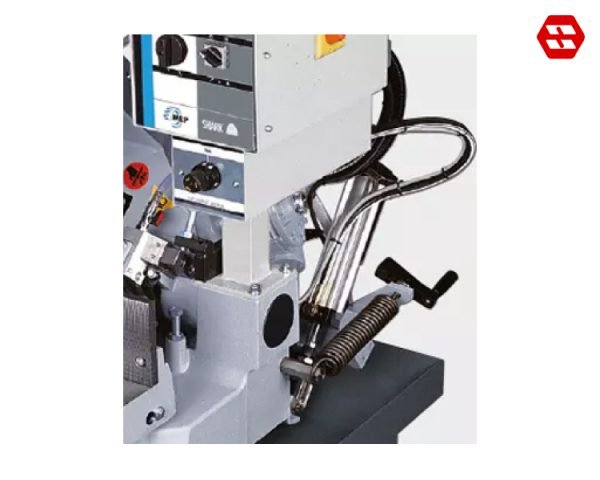

Optional CCS System
The CCS system allows to perform single cuts without operator - Saw head down feed rate by gravity: the cutting of the material is executed in automatic mode once the operator starts the cycle.
Technical Data Manual Bandsaw Machine
SHARK 281 CCS MEP
CUTTING RANGE
 |  |  | |
| 0° | 250 mm | 230 mm | 280 x 200 mm |
| +45° | 190 mm | 180 mm | 180 x 180 mm |
| +60° | 120 mm | 110 mm | 110 x 110 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 285 mm |
| Band size | 2950 x 27 x 0.9 mm |
| Blade motor power | 1.5 / 1.8 Kw – Three-phase |
| Blade rotation speed | 36 / 72 m/min – 2 Speeds |
