Description
Manual Bandsaw Machine SHARK 282 MEP
SHARK 282, manual pull-down band sawing machine to cut metals mitering from -45° to +60°, also available in the CCS (Cutting Control System) version in order to also perform single cuts without operator.

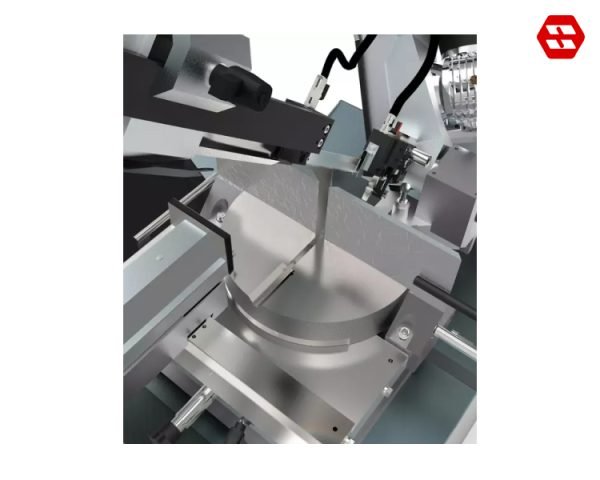

Cast Iron Structure
Cast-iron structure of the saw head, cutting table and vice to absorb vibration during the cut and ensure longer blade life.

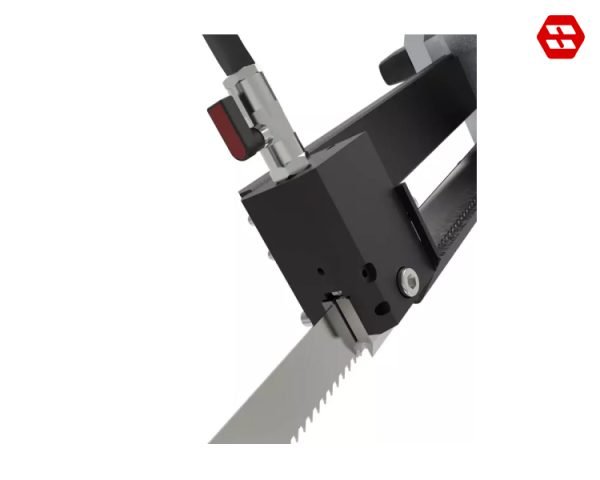

Hard Metal Blade-Guide Pads
Adjustable and extremely wear-resistant hard metal blade-guide pads that ensure longer blade life and cuttting stability
Optional CCS System
The CCS system allows to perform single cuts without operator - Saw head down feed rate by gravity: the cutting of the material is executed in automatic mode once the operator starts the cycle.
Technical Data Manual Bandsaw Machine
SHARK 282 MEP
CUTTING RANGE
 |  |  | |
| 0° | 250 mm | 220 mm | 280 x 200 mm |
| +45° | 230 mm | 200 mm | 200 x 200 mm |
| +60° | 120 mm | 80 mm | 140 x 80 mm |
| – 45° | 200 mm | 170 mm | 200 x 140 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 285 mm |
| Band size | 2950 x 27 x 0.9 mm |
| Blade motor power | 1.5 / 1.8 Kw – Three-phase |
| Blade rotation speed | 36 / 72 m/min – 2 Speeds |
