SHARK 332-1 CCS

SHARK 332-1 CCS-CAST-IRON STURCTURE

Manual Bandsaw Machine SHARK 332-1 CCS MEP

The SHARK 332-1 CCS MEP Manual Bandsaw Machine is a highly efficient and versatile cutting tool designed for precision metalworking. This robust machine offers a cutting capacity of up to 300 mm, making it suitable for a wide range of applications.It features a Controlled Cutting System (CCS) for optimizing cutting speed and extending blade life.

Categories: Bandsaw Machine, Horizontal, Manual, MEP

Description

Description

Manual Bandsaw Machine SHARK 332 CCS MEP

SHARK 332-1 CCS, band sawing machine to cut metals mitering from -45° to +60°. In addition to the manual pull-down mode, it can also perform single cuts without operator.

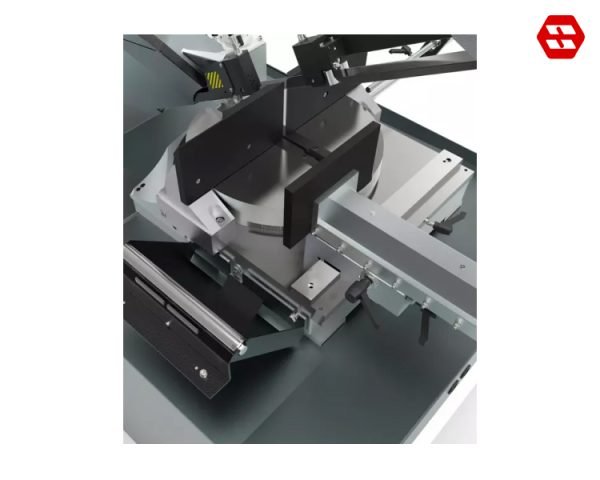

Cast-Iron Structure

Cast-iron structure of the saw head, cutting table and vice to absorb vibration during the cut and ensure longer blade life.

Technical Data Manual Bandsaw Machine
SHARK 332-1 CCS MEP

CUTTING RANGE


0°	300 mm	250 mm	330 x 250 mm
+45°	260 mm	250 mm	260 x 200 mm
+60°	180 mm	170 mm	170 x 170 mm
– 45°	240 mm	210 mm	240 x 160 mm

PERFORMANCE CHARACTERISTICS

Max. vice opening	335 mm
Band size	3650 x 27 x 0.9 mm
Blade motor power	1.5 / 1.8 Kw – Three-phase
Blade rotation speed	40 / 80 m/min – 2 Speeds
