Manual Circular Saw Machine TIGER 352 MEP

The Manual Circular Saw Machine TIGER 352 MEP is a reliable and versatile tool designed for precise metal cutting operations. With its manual operation, it offers flexibility and control, making it suitable for various cutting tasks in workshops and small-scale metalworking operations.

Description

TIGER 352

TIGER 352, electropneumatic manual vertical circular sawing machine to cut metals mitering from -45° to +60°. Upon request, it is provided with a pneumatic vice (MA) manually activated through a switch.The manual vertical circular sawing machine for the cut of tubes and profiles and characterized by its unique simplicity and flexibility of use

TIGER 352

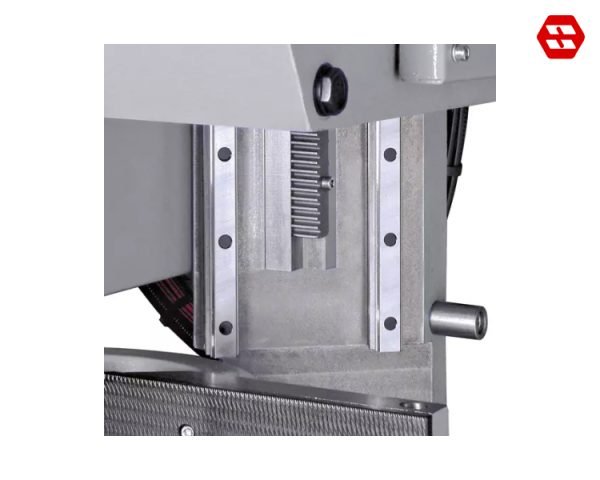

Saw Head Motion on Two Linear Guides

The motion of the saw head on double linear guide with preloaded ball scre slides drastically reduces vibrations during the cut.

SAW HEAD MOTION ON TWO LINEAR GUIDES

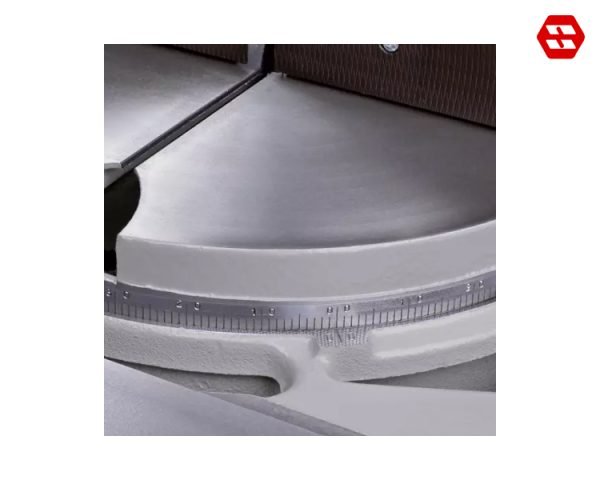

Easy Handling of The Turning Table

The turning table is assembled on a central pin and thrust bearing for an easy and precise rotation.

EASY HANDLING OF THE TURNING TABLE

Blade Rotation at Four Speeds

The blade rotation at four speeds 15/30/45/90 rpm (OPTIONAL 30/60/90/180 rpm) with double polarity spindle motor and mechanical gearbox allows to perform efficient cuts of any kind of materia

BLADE ROTATION AT FOUR SPEEDS

Technical Data Circular Saw Machine Semi Automatic TIGER 352 MEP

CUTTING RANGE

Ø
350115 mm180 x 95 mm90 mm
+ 45°350110 mm95 mm125 x 95 mm64 x 90 mm
+ 60°35090 mm80 mm90 x 95 mm45 x 90 mm
– 45°350110 mm95 mm125 x 95 mm64 x 90 mm

PERFORMANCE CHARACTERISTICS

Max. vice opening190  mm
Disc sizeHSS 350 x 32 x 2.5 mm
Blade motor power1.8/2.6 Kw – Three-phase
Blade rotation speed15/30/45/90 rpm
