SAWING
THOR 1020
MOTION OF THE SAW HEAD ON LINEAR GUIDES WITH PRELOADED BALL SCREW SLIDES
LOADING SIDE WITH ROLLER CONVEYOR
TWIST-FREE STUCTURE

Semi Automatic Bandsaw Machine THOR 1020 MEP

The THOR 1020 is a powerhouse bandsaw machine engineered for precise cutting across diverse materials. With its sturdy construction and advanced features like adjustable cutting angles and variable blade speeds, the THOR 1020 guarantees unparalleled cutting accuracy and efficiency.

Categories: , , ,

Description

THOR 1020

The semi-automatic dual-column band sawing machine made to last! Heavy-duty and user-friendly are the best solution for tube cutting up to 1020 mm.THOR 1020, dual-column semi-automatic band sawing machine for 0° cuts of structural steels, with size up to 1020x1020 mm.

THOR 860

Loading Side With Roller Conveyor

Large loading side equipped with a roller system and vertical rollers.

LOADING SIDE WITH ROLLER CONVEYOR

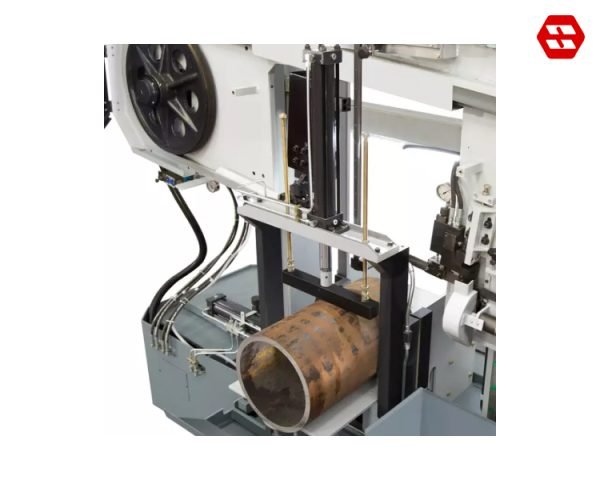

Twist-Free Stucture

Heavy-duty welded structural steel design. Twist-free structure to absorb vibration thus providing the sawing machine with higher cutting stability and longer blade life.

TWIST-FREE STUCTURE

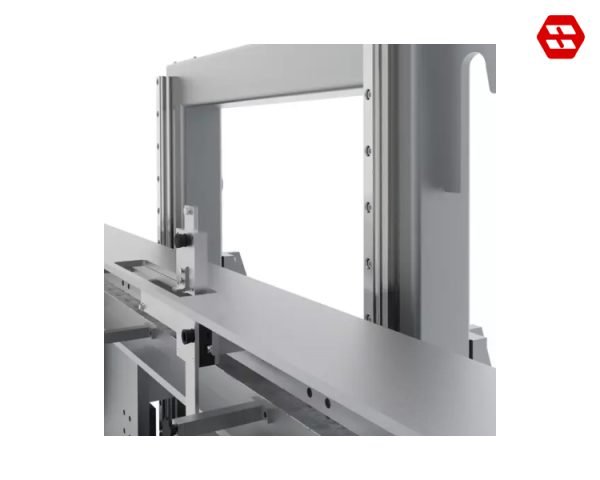

Motion of The Saw Head on linear Guides With Preloaded Ball Screw Slides

Motion of the saw head on linear guides with preloaded ball screw slides that grants both a mechanical vibration reduction during the cut and greater cutting stability.

MOTION OF THE SAW HEAD ON LINEAR GUIDES WITH PRELOADED BALL SCREW SLIDES

Technical Data Bandsaw Machine Semi Automatic
THOR 1020 MEP

CUTTING RANGE


0°1020 mm1020 x 1020 mm1020 x 620 mm

PERFORMANCE CHARACTERISTICS

Max. vice opening 1030 mm
Band saw blade dimension11000 x 67 x 1.6 mm
Blade motor 15 Kw – Three-phase
Blade speed20 ÷ 100 m/min
