Automatic Bandsaw Machine SHARK 350 CNC HS 4.0 MEP

The Bandsaw Machine Automatic SHARK 350 CNC HS 4.0 MEP is a state-of-the-art industrial cutting tool engineered for precision metalworking operations. Featuring CNC (Computer Numerical Control) technology and a high-speed cutting capability, it offers exceptional accuracy and efficiency.

Description

SHARK 350 CNC HS 4.0

SHARK 350 CNC HS 4.0, dual-column electromechanical automatic band sawing machine for 0° cuts of structural, stainless and alloy steels, solids and profiles. In addition to the automatic cutting cycle, it can also operate in semi-automatic mode. The unrivaled automatic sawing machine in terms of extreme technology and cutting performance

SHARK 350 NC HS 5.0

Cast-Iron Structure

Cast-iron structure to absorb vibrations and ensure greater cutting stability and longer blade life.

CAST-IRON STRUCTURE

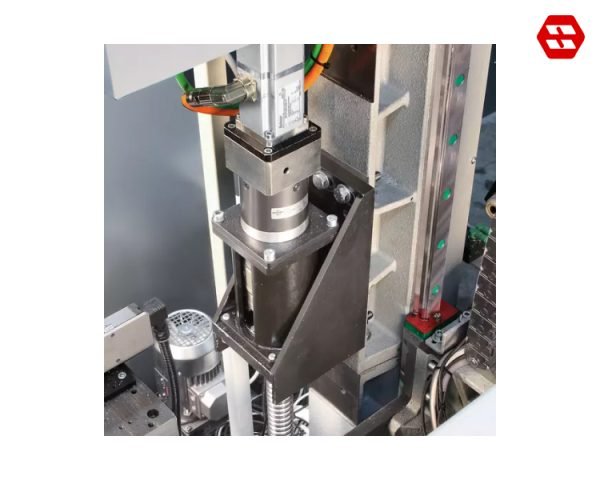

Motion of The Saw Head Powered by Brushless Motor on A Screw Nut

Motion of the saw head powered by a brushless motor for an auto-check of all data set/recorded so as to adjust cutting parameters in real-time, the machine cutting stability, and Ø 40mm ball bearings screw nut that ensures a mechanical vibration reduction during the cut.

MOTION OF THE SAW HEAD POWERED BY BRUSHLESS MOTOR ON A SCREW NUT

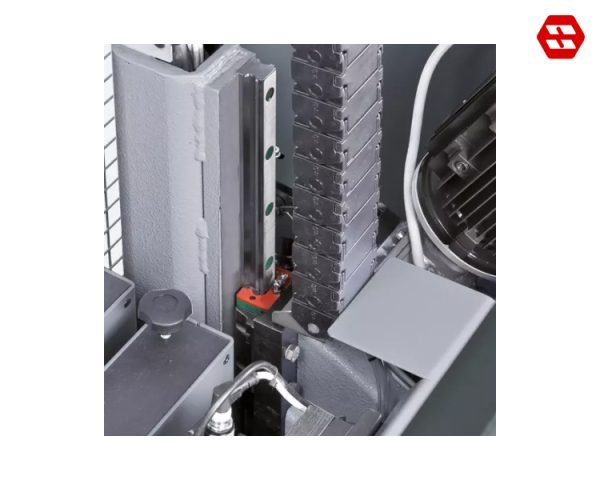

Motion of The Saw Head on Linear Guides With Preloaded Ball Screw Slides

Motion of the saw head on linear guides with preloaded ball screw slides that ensures a mechanical vibration reduction during the cut and greater cutting stability.

MOTION OF THE SAW HEAD ON LINEAR GUIDES WITH PRELOADED BALL SCREW SLIDES 3

Industry 4.0 Ready-IOT

The optional IOT allows to maximize data collection and use them in favor of a better sawing machine cutting performance and longer blade life.

INDUSTRY 4.0 READY-IOT

High Safety

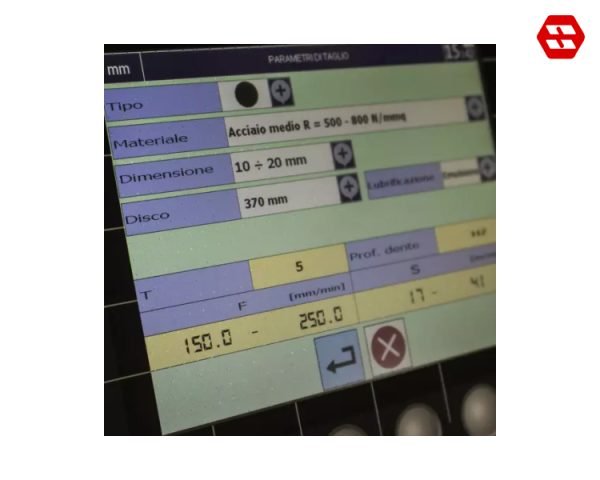

The material library allows the automatic setting of the blade speed (S) and head down feed rate (F) according to the type of material. From the extendable material library, you can choose the type and the geometry of the material, the hardness and the type of blade. Accordingly, the control sets the right blade speed and head down feed rate.

MATERIAL LIBRARY FOR THE AUTOMATIC SETTING OF THE BLADE ROTATION SPEED AND HEAD DOWN FEED RATE

Technical Data Bandsaw Machine Semi Automatic
SHARK 350 CNC HS 4.0 MEP

CUTTING RANGE


350 mm350 mm

PERFORMANCE CHARACTERISTICS

Max. vice opening355 mm
Minimum cutting length10 mm
Rest piece no longer feeded130  mm
Band size4640 x 34 x 1.1 mm
Blade motor power5.5 Kw – Three-phase
Blade rotation speed15 ÷ 100 m/min
Inverter power11  Kw
