Automatic Bandsaw Machine SHARK 660 CNC HS 4.0 MEP

The Bandsaw Machine Automatic SHARK 660 CNC HS 4.0 MEP is a cutting-edge industrial tool designed for precision metal cutting. Featuring CNC (Computer Numerical Control) technology and high-speed capabilities, it offers superior accuracy and efficiency. With the MEP (Material End Point) optimization system, it maximizes material usage, minimizing waste and enhancing productivity.

Description

SHARK 660 CNC HS 4.0

SHARK 660 CNC HS 4.0, dual-column electromechanical automatic band sawing machine for 0° cuts of structural, stainless and alloy steels, solids and profiles. In addition to the automatic cutting cycle, it can also operate in semi-automatic mode.

SHARK 660 CNC HS 4.0

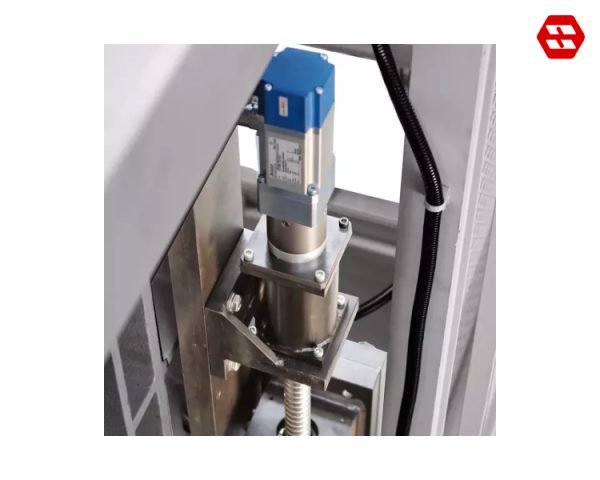

Motion of The Saw Head on Linear Guides

Motion of the saw head powered by two brushless motors for an auto-check of all data set/recorded so as to adjust cutting parameters in real-time, and Ø 32mm ball bearings screw nut to ensure a mechanical vibration reduction during the cut.

MOTION OF THE SAW HEAD ON LINEAR GUIDES

Adaptive Saw Head Down Feed Rate

Self-regulation in real-time of head down feed rate according to type of material or blade wear.

ADAPTIVE SAW HEAD DOWN FEED RATE 3

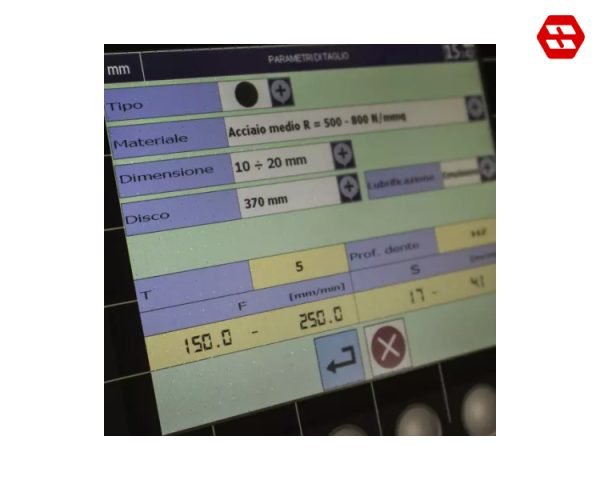

Material Library for The Automatic Setting of The Blade Rotation Speed And Head Down Feed Rate

From the extendable material library, you can choose the type and the geometry of the material, the hardness and the type of blade. Accordingly, the control sets the right blade speed and head down feed rate.

MATERIAL LIBRARY FOR THE AUTOMATIC SETTING OF THE BLADE ROTATION SPEED AND HEAD DOWN FEED RATE 2

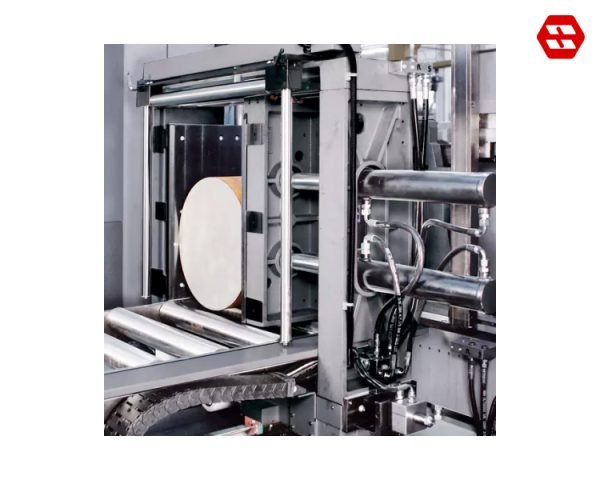

Floating Bar Feeder Vice

The bar feeder vice is self-aligning in order to feed even non-straight bars.

FLOATING BAR FEEDER VICE

Industry 4.0 Ready-IOT

The optional IOT allows to maximize data collection and use them in favor of a better sawing machine cutting performance and longer blade life.

INDUSTRY 4.0 READY-IOT

Technical Data Bandsaw Machine Semi Automatic
SHARK 660 CNC HS 4.0 MEP

CUTTING RANGE


660 mm660 mm

PERFORMANCE CHARACTERISTICS

Max. vice opening670  mm
Minimum cutting length10 mm
Rest piece no longer feeded70  mm
Band size8400 x 54 x 1.6 mm
Blade motor power15 Kw – Three-phase
Blade rotation speed15 ÷ 200 m/min
Inverter power22 – 47 Kw/A
