Description
TIGER 372 CNC LR 4.0 RC
TIGER 372 CNC LR 4.0 RC, electropneumatic automatic circular sawing machine to cut steels mitering from -45° to +60°. In addition to the automatic cutting cycle, it can also operate in semi-automatic mode. The automatic vertical circular sawing machine with controlled head rotation, ideal for those having the need for high production and angle cutting

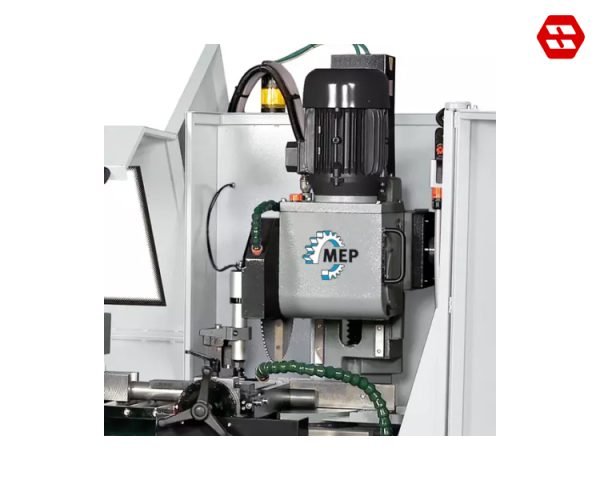

Cast-Iron Structure
Cast-iron structure to absorb vibrations and ensure greater cutting stability and longer blade ife.
Industry 4.0 Ready -IOT
The optional IOT allows to maximize data collection and use them in favor of a better sawing machine cutting performance and longer blade life.
Motion of The Saw Head on Linear Guides
Motion of the saw head on linear guides with preloaded ball screw slides that ensures a mechanical vibration reduction during the cut.
Adaptive Saw Head Down Feed Rate
Self-regulation in real-time of head down feed rate according to the type of material that grants a great surface finishing in any working condition, even in case of blade wear.
Technical Data Semi Automatic Circular Saw Machine TIGER 372 CNC LR 4.0 RC MEP
Cutting range – dimensions obtained with optimized use of the supplied jaw set
| Ø |  |  |  |  | |
| 0° | 370 | 110 mm | 95 mm | 180 x 95 mm | |
| + 45° | 370 | 80 mm | 80 mm | 80 x 95 mm | |
| + 60° | 370 | 30 mm | 30 mm | 30 x 85 mm | |
| – 45° | 370 | 55 mm | 55 mm | 55 x 80 mm |
Cutting range – with pair of long movable jaws
| Ø | | | | | |
| 0° | 370 | 110 mm | 95 mm | 180 x 95 mm | 70 x 100 mm |
| + 45° | 370 | 60 mm | 65 mm | 60 x 95 mm | |
| + 60° | 370 | 25 mm | 25 mm | 25 x 85 mm | |
| – 45° | 370 | 35 mm | 35 mm | 35 x 80 mm |
Cutting range – with pair of medium movable jaws
| Ø | | | | | |
| 0° | 370 | 110 mm | 95 mm | 180 x 95 mm | 70 x 100 mm |
| + 45° | 370 | 65 mm | 65 mm | 65 x 95 mm | |
| + 60° | 370 | 25 mm | 25 mm | 25 x 85 mm | |
| – 45° | 370 | 40 mm | 40 mm | 40 x 80 mm |
Cutting range – with pair of short movable jaws
| Ø | | | | | |
| 0° | 370 | 110 mm | 95 mm | 180 x 95 mm | 70 x 100 mm |
| + 45° | 370 | 75 mm | 75 mm | 75 x 95 mm | |
| + 60° | 370 | 30 mm | 30 mm | 30 x 85 mm | |
| – 45° | 370 | 50 mm | 50 mm | 50 x 80 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 190 mm |
| Rest piece no longer feeded | 260 mm |
| Circular blade size | HSS 370 x 32 x 3 mm |
| Blade motor power | 5.5 Kw – Three-phase |
| Blade rotation speed | 15 ÷ 150 rpm |
