Automatic Circular Saw Machine TIGER 402 CNC HR 4.0 MEP

The Automatic Circular Saw Machine TIGER 402 CNC HR 4.0 MEP is a cutting-edge, highly efficient tool tailored for precision metal cutting in demanding industrial applications. It integrates fully automatic operations with the sophisticated CNC (Computer Numerical Control) HR 4.0 technology, ensuring unparalleled accuracy, speed, and efficiency.

Description

TIGER 402 CNC HR 4.0

TIGER 402 CNC HR 4.0, electropneumatic automatic circular sawing machine to cut aluminium and light alloys mitering from -45° to +60°. In addition to the automatic cutting cycle, it can also operate in semi-automatic mode. The automatic vertical sawing machine with high speed ideal for precision cutting of aluminium and light alloys

TIGER 402 CNC HR 4.0

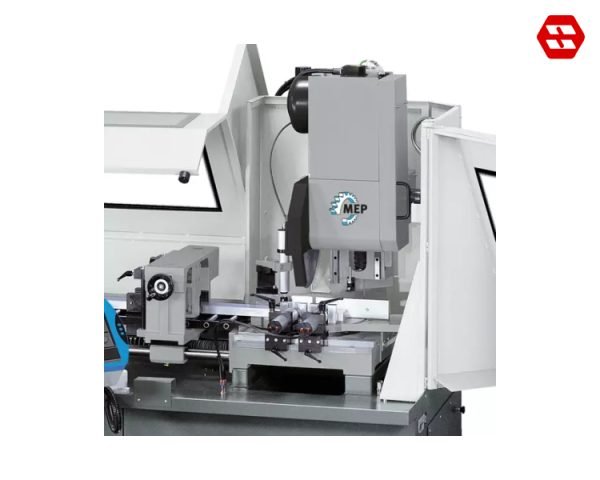

Cast-Iron Structure

Cast-iron structure to absorb vibrations and ensure greater cutting stability and longer blade ife.

CAST-IRON STRUCTURE 7

Industry 4.0 Ready -IOT

The optional IOT allows to maximize data collection and use them in favor of a better sawing machine cutting performance and longer blade life.

INDUSTRY 4.0 READY -IOT

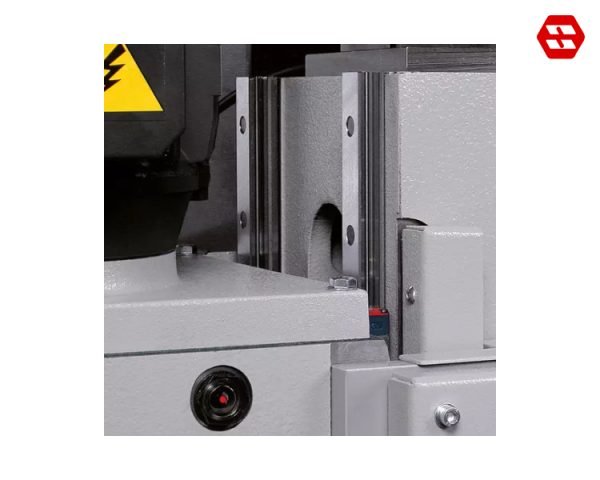

Motion of The Saw Head on Linear Guides

Motion of the saw head on linear guides with preloaded ball screw slides that ensures a mechanical vibration reduction during the cut.

MOTION OF THE SAW HEAD ON LINEAR GUIDES 1

Adaptive Saw Head Down Feed Rate

Self-regulation in real-time of head down feed rate according to the type of material that grants a great surface finishing in any working condition, even in case of blade wear.

ADAPTIVE SAW HEAD DOWN FEED RATE 6

Technical Data Semi Automatic Circular Saw Machine TIGER 402 CNC HR 4.0 MEP

CUTTING RANGE

 Ø
400130 mm120 mm180 x 100 mm
+ 45°400115 mm100 mm120 x 100 mm
+ 60°400115 mm90 mm90 x 90 mm
– 45°400115 mm100 mm120 x 100 mm

PERFORMANCE CHARACTERISTICS

Max. vice opening185 mm
Rest piece no longer feeded160 mm
Circular blade sizeHM 400 x 32 mm
Blade motor power3.3 / 4.4 Kw – Three-phase
Blade rotation speed1400/2800 rpm
