Automatic Circular Saw Machine VELOCEX 80 For High-Speed Cutting MEP

The Automatic Circular Saw Machine VELOCEX 80 MEP is engineered for high-speed cutting, setting a new standard in precision and efficiency for industrial metalworking. Tailored for operations requiring rapid throughput without sacrificing quality, this machine boasts advanced automation, ensuring consistent, accurate cuts at speeds that significantly reduce processing times.

Description

VELOCEX 80

Design and technology: the winning combination characterizing this amazing circular sawing machine for high-speed cutting of solid bars of diameter of up to 80 mm.VELOCEX 80, automatic circular sawing machine for 0° high-speed cuts of steels and alloys.

VELOCEX 80

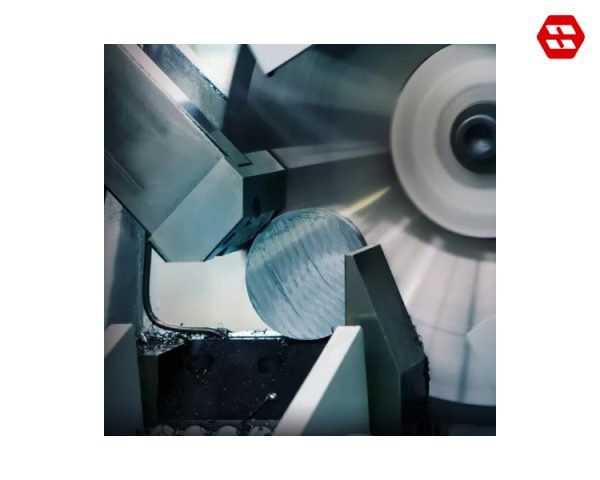

High-Performance Circular Sawing Machine For Mass Production

High-speed circular band sawing machine for large-scale mass production: cutting performance at least twice higher than a band sawing machine.

HIGH-PERFORMANCE CIRCULAR SAWING MACHINE FOR MASS PRODUCTION

Carbide Tipped Circular Saw Blade

Carbide tipped circular saw blade for high production, excellent finishing and accuracy in lenghts.

CARBIDE TIPPED CIRCULAR SAW BLADE

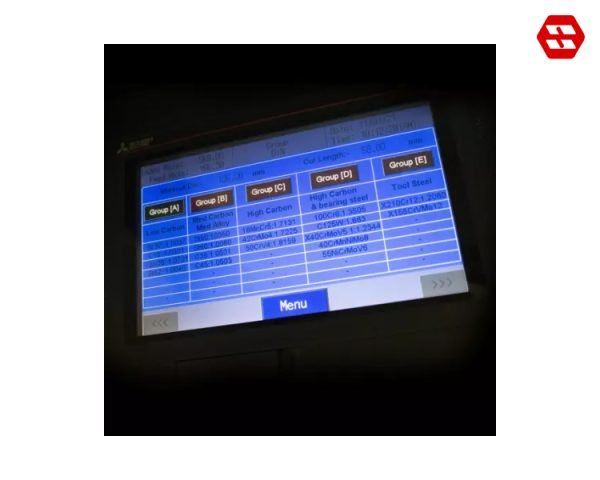

Material Library For The Automatic Setting of The Blade Rotation Speed and Head Down Feed Rate

the extendable material library, you can choose the type and the geometry of the material, the hardness and the type of blade. Accordingly, the control sets the right blade speed and head down feed rate.

MATERIAL LIBRARY FOR THE AUTOMATIC SETTING OF THE BLADE ROTATION SPEED AND HEAD DOWN FEED RATE 3

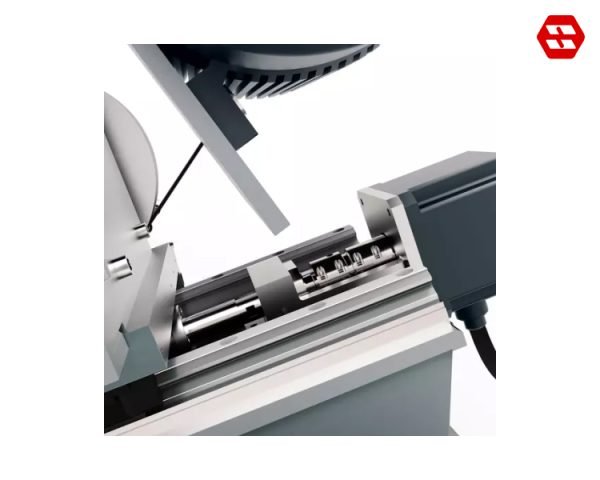

Motion of The Saw Head Powered by a Servo Motor

Motion of the saw head powered by a servo motor on linear guides with preloaded ball screw lines on ball screw nut that ensures a mechanical vibration reduction during the cut, thus giving the machine greater cutting stability.

MOTION OF THE SAW HEAD POWERED BY A SERVO MOTOR

Double Clamping Hydraulic System of The Material

Bar feeder double clamping system with single stroke of 500 mm repeatable to cut to any length and sliding on ball screw linear guides through brushless motor and ball screw nut, thus granting the utmost accuracy.

DOUBLE CLAMPING HYDRAULIC SYSTEM OF THE MATERIAL

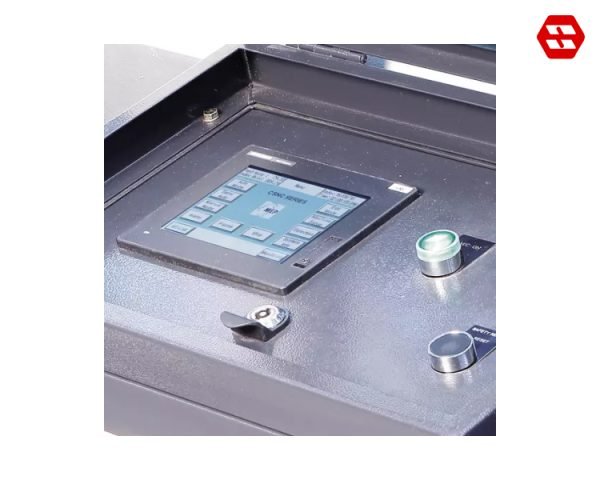

User-Friendly Progamming

8'' Mitsubishi touchscreen control allowing to set: saw head down feed rate, chip load, blade speed, number of cuts to execute, material size, cutting length. Moreover, it shows cutting time, cycle time and number of cuts executed.

USER-FRIENDLY PROGRAMMING

Technical Data Semi Automatic Circular Saw Machine VELOCEX 80 MEP

CUTTING RANGE


80 mm60 mm65 mm

PERFORMANCE CHARACTERISTICS

Max. vice opening85 mm
Minimum cut off length6 mm
Remnant length65 mm / 80 mm + cut length
Circular blade size

285 x 2.0 x 1.70 x 32 – 4/9/50 & 4/11/63 mm

315 x 2.0 x 1.70  x32 – 4/12/90 & 4/11/63 mm

Blade motor 11 Kw – Three-phase
Blade speed50 ÷ 200 m/min
