Bandsaw Machine 2 Band Wheels LPS60-3 BEHRINGER

Introducing the BEHRINGER LPS60-3 Bandsaw Machine, featuring dual band wheels for superior cutting precision and stability. Engineered by BEHRINGER, renowned for cutting-edge technology, this machine ensures efficiency, durability, and adaptability. Perfect for industrial applications, it delivers precise cuts across various materials and shapes.

Description

Vertical Bandsaw LPS60-3

Tailored to meet your specific requirements, the compact BEHRINGER LPS60-3 block saw excels in contour- and allowance-optimized production of blanks across various plate dimensions and thicknesses. With its robust design, this plate saw offers exceptional flexibility, seamlessly adapting to your needs.

Vertical Bandsaw LPS60-2 1

Servo Feed System

The BEHRINGER servo feeding system ensures constant chip removal and makes better use of the capabilities of modern bandsaw blades.

Servo Feed System 5

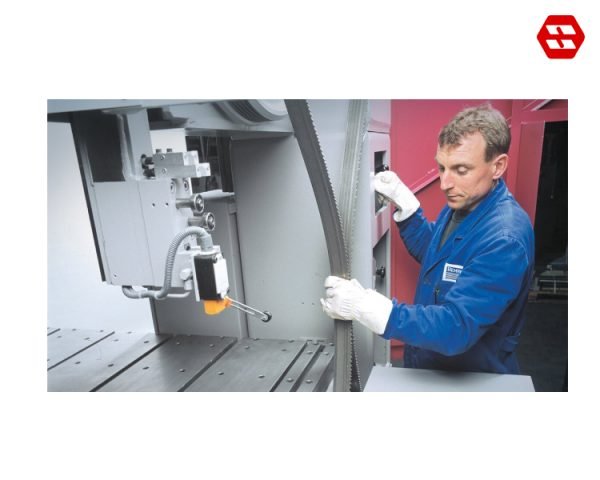

Quick Saw Blade Change

Quick and easy – tool-free bandsaw blade changes mean shortest set-up times. Just a few simple steps are all that is needed to change the bandsaw blade of the block saw.

Quick saw blade change 5

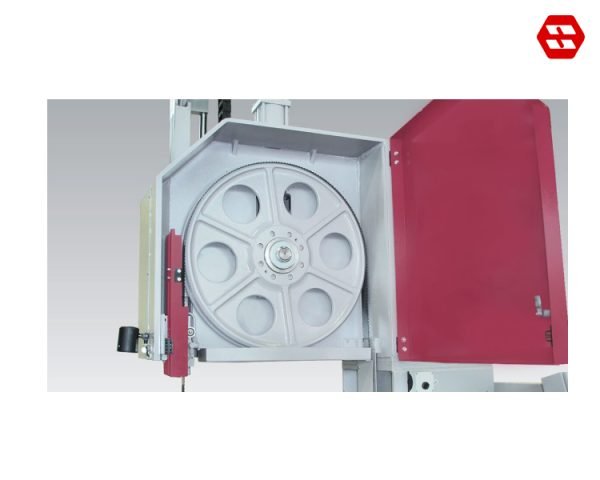

Band Guiding Parts Made of Grey Cast Iron

Crafted from durable grey cast iron, our band guiding parts ensure superior stability and precision in your bandsaw machine. Designed to withstand the rigors of continuous operation, these components offer enhanced vibration absorption, leading to smoother cuts and extended tool life.

Band guiding parts made of grey cast iron 5

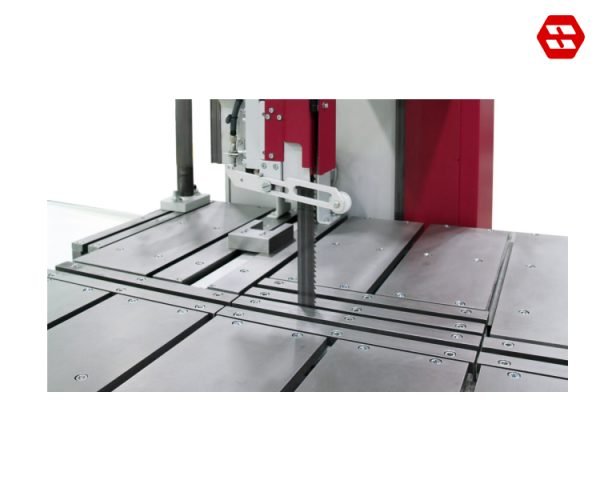

Precise Band Guides and Effective Chip Cleaning

Featuring precise band guides and an effective chip cleaning system, our saw ensures optimal cutting accuracy and efficiency.

Precise band guides and effective chip cleaning 5

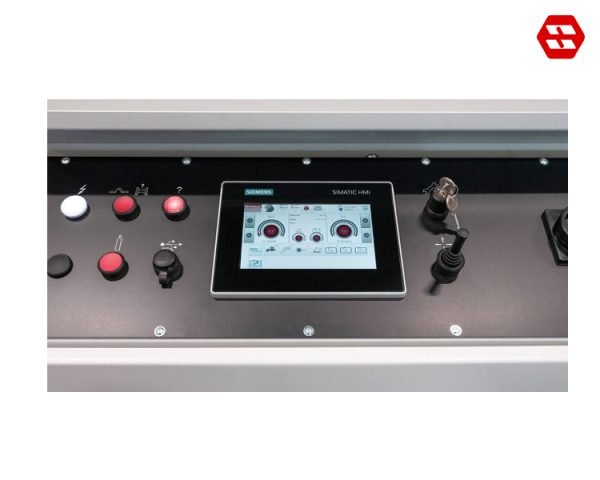

Intelligent Control

Equipped with intelligent control technology, our machine offers unparalleled precision and ease of use. This smart system enables automatic adjustments and real-time monitoring, ensuring optimal performance and accuracy in every operation.

Intelligent control 6

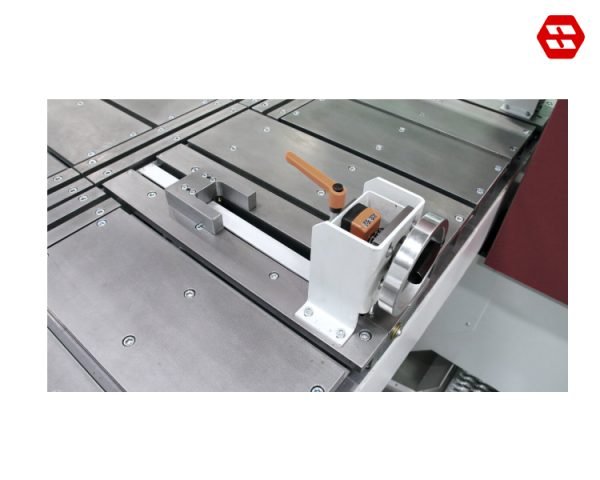

Application-Specific Table Variants

LPS vertical bandsaws can be adapted to suit your exact requirements. The material support table has a modular construction and can be equipped with a variety of different options with a spacing pattern of 250 mm.

Application-specific table variants 4

Features of The Vertical Bandsaw LPS60-3

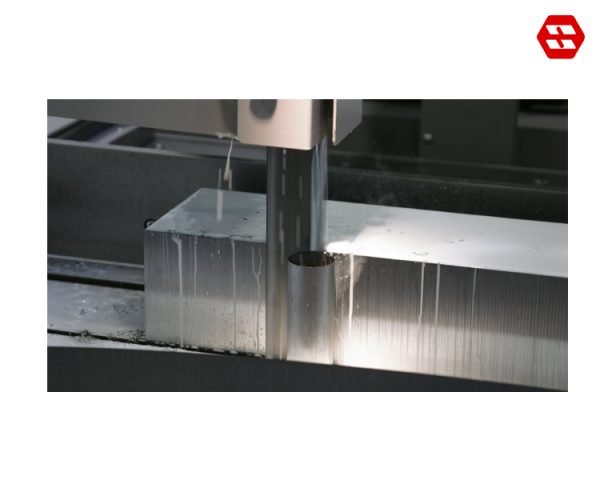

Unsurpassed Precision and Cutting Performance.

The high cutting accuracy, quiet running and long blade life are all down to the special torsion resistant design of the saw frame.

Cast Iron Band Guiding Parts.

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

A Carefully Designed Machine Concept.

The longitudinal cutting method is a typical feature of the BEHRINGER plate saws. The workpiece remains firmly clamped to the material table while the saw unit moves.

Technical Data Vertical Bandsaw LPS60-3

Cutting Range
Cutting length3,000 mm
Cutting width680 mm
Cutting height600 mm
Minimum cutting width15 mm
Minimum cutting height10 mm
Performance Characteristics
Drive power5.5 kW
Blade speed17 – 120 m/min
Saw blade dimensions5,800 x 54 x 1.3 mm
Total power13 kW
Supporting area inside table680 x 3,000 mm
Supporting area outside table680 x 3,000 mm
Dimensions and Weight
Length5,450 mm
Width2,350 mm
Height3,070 mm
Weight9,100 kg
Material support height1,385 mm
