Bandsaw Machine Automatic SLB240A BEHRINGER

The SLB240A from BEHRINGER is a fully automatic bandsaw designed for easy operation and maximum reliability. It is ideally suited for single and serial cuts of pipes, profiles and solid materials made of metal and comparable plastics. At the same time, it impresses with its precision and smooth running.

Description

Automatic Bandsaw SLB240A

The SLB240A from BEHRINGER is a fully automatic bandsaw designed for easy operation and maximum reliability. It is ideally suited for single and serial cuts of pipes, profiles and solid materials made of metal and comparable plastics. At the same time, it impresses with its precision and smooth running.Simple operation and precise serial cuts for professional use

Automatic bandsaw SLB240A

Saw Band Tensioning

The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically. In order to prevent overloading during the sawing process, the pressure is equalized by means of a pretensioned disc spring package. In the event of a band break, the sawing machine switches off automatically.

Saw Band Tensioning

Hydraulic Saw Feed

The saw feed is hydraulically controlled with an infinitely adjustable feed rate. The lifting and lowering of the saw frame is controlled by push buttons.

Hydraulic Saw Feed

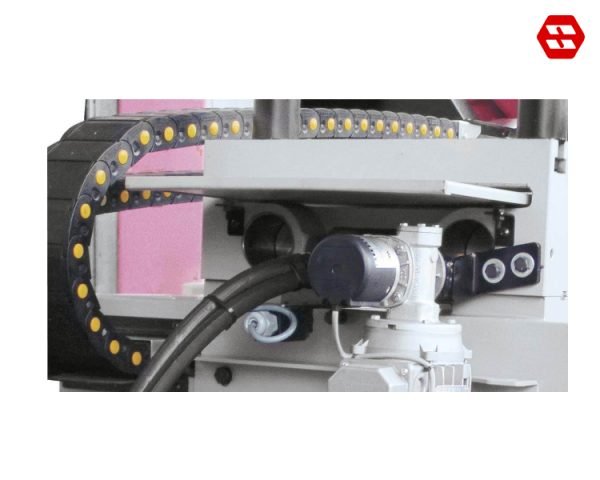

Automatic Material Feed

A hydraulically operated feeding gripper positions the material for series cuts. The cutting length is set using a stop that is positioned by an electrically driven spindle. Feed length and number of cuts can be programmed in the control.

Automatic Material Feed

Control Panel

The Control Panel, an intuitive interface designed to streamline operation and control of industrial machinery, ensuring efficient performance and ease of use.

Control Panel 2

Features of The Automatic Bandsaw SLB240A

Robust Material Vice With Quick-Clamping Device.

The material is clamped by a robust vice with a hydraulic quick-clamping device. The vice is adjusted to the material width using a handwheel.

NC Program Control.

Modern programmable logic controller with clear masks on the LCD display for simple and safe manual and automatic operation.

Saw Band Tensioning.

The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically.

Frequency-Controlled Saw Drive.

Offers maximum flexibility when sawing different material grades such as stainless steel or aluminum.

Precise Band Guides.

Combination of roller and carbide guide of the saw band. Adjustment of the movable band guide according to the cutting width.

Hydraulic Saw Feed.

The saw feed is hydraulically controlled with an infinitely adjustable feed rate. The lifting and lowering of the saw frame is controlled by push buttons.

Coolant System.

The machine is equipped with 2 regulated coolant nozzles. The coolant tank can be removed for easy cleaning.

Technical Data Automatic Bandsaw SLB240A

Cutting Range
Cutting range 90° round260 mm
Cutting range 90° flat270 x 260 mm
Smallest dimension to be sawn round10 mm
Smallest dimension to be sawn flat10 x 10 mm
Performance Characteristics
Feeding length single stroke510 mm
Drive power1.5 kW
Blade speed16 – 120 m/min
Saw blade dimensions3,300 x 27 x 0.9 mm
Rest piece length in automatic mode80 mm
Shortes cutting length10 mm
Saw feedhydraulic
Material feedhydraulic
Dimensions and Weight
Length1,700 mm
Width1,800 mm
Height1,700 mm
Weight950 kg
Material support height850 mm
