Bandsaw Machine HBE511A Dynamic BEHRINGER

The HBE511A Dynamic Automatic Horizontal Bandsaw is the epitome of precision and efficiency in industrial cutting. Engineered by BEHRINGER, this advanced machine offers high-performance cuts with minimal deviations across a wide range of materials, from metals to plastics.

Description

HBE511A Dynamic

The BEHRINGER HBE511A Dynamic automatic bandsaw is engineered for cost-effective operation within the industrial and steel trade sectors. It delivers precision cuts with minimal deviations across a diverse range of materials, spanning from easy-to-machine metals to challenging plastics. This versatility enables efficient processing of profiles, tubes, and solid materials.

HBE511A Dynamic 3

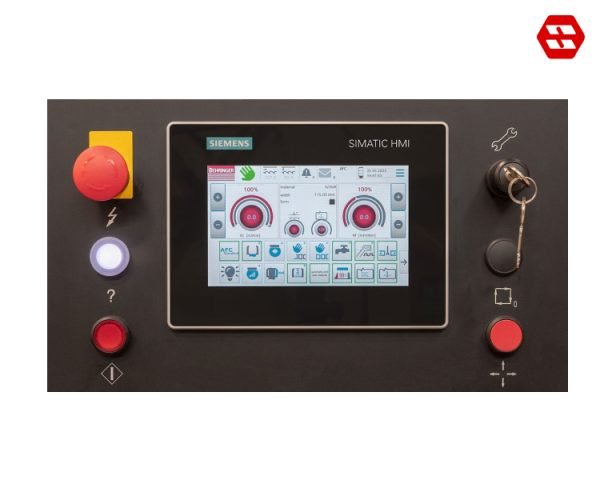

Intuitive BehrCtrl10 Touch Control

Experience intuitive control: BehrCtrl10 touchscreen

Intuitive BehrCtrl10 touch control 3

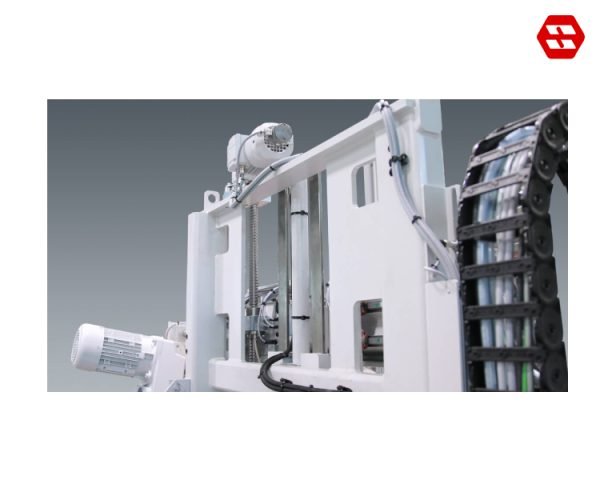

Servo-Downfeed With Cutting Pressure Control.

This advanced technology allows for automatic adjustment of the cutting pressure applied to the material being cut, ensuring optimal performance while minimizing waste and maximizing blade life.

Servo-downfeed with cutting pressure control 2

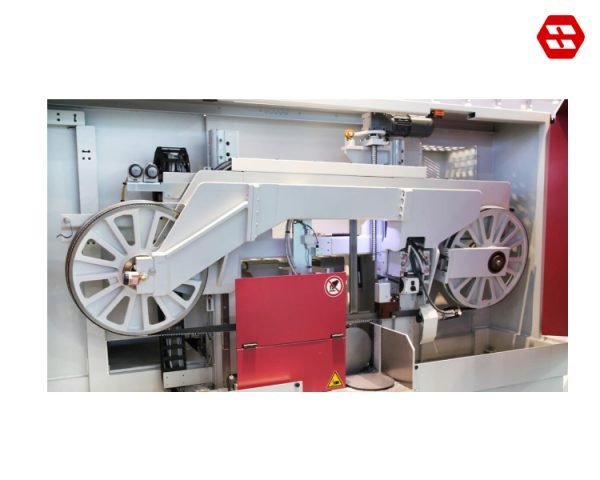

Stable Cast Iron Saw Frame.

The stable cast iron saw frame is a cornerstone of reliability and durability in industrial cutting machinery. Crafted from robust cast iron, this frame provides a solid foundation for precise and efficient cutting operations.

Stable cast iron saw frame 2

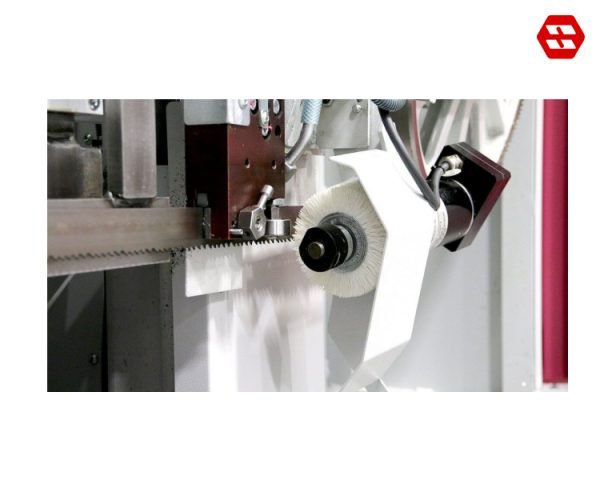

Electrically Driven Chip Brush

With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

Electrically driven chip brush 3

Features of The Horizontal Bandsaw HBE511A Dynamic

Precision Portal-Design Guide System.

The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

Servo Downfeed System.

The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.

Auto-Feed-Control.

Selection of the material in an extensive material database. The AFC automatically calculates the optimal values for saw feed and cutting speed.

Energy Efficient.

The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

Automatic Guide Arm.

Optimum sawing result without any adjustments - even with frequently changing material sizes.

Cast Iron Band Guiding Parts.

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Easy to Use.

Quick and easy operation of all functions of the automatic band saw via touch control.

Double Clamping Vice.

Offers process reliability - especially when sawing bundles or making single cuts.

Technical Data Horizontal Bandsaw HBE511A Dynamic

Cutting Range
Cutting range 90° round510 mm
Cutting range 90° flat510 x 510 mm
Smallest dimension to be sawn round10 mm
Smallest dimension to be sawn flat10 x 8 mm
Performance Characteristics
Feeding length single stroke 650 mm
Drive power 5.2 kW
Saw blade dimensions 5,730 x 41 x 1.3 mm
Rest piece length in automatic operation 80 mm
Total power 6.5 kW
Saw feed servo-feed via ball screw
Material feed ball screw
Material clamping hydraulic
Saw blade cleaning ectrically driven chip brush
Dimensions and Weight
Length 2,000 mm
Width 2,850 mm
Height 2,220 mm
Weight 3,500 kg
Material support height 800 mm
