Bandsaw Machine HBP1800-2100 Gantry Saw BEHRINGER

BEHRINGER HBP1800-2100 Gantry Saw, a robust and versatile bandsaw machine designed for industrial cutting tasks. With its gantry design, this machine offers stability and precision when handling various workpieces. Engineered for durability and efficiency, it’s equipped with advanced features to ensure reliable performance in steel fabrication and metalworking operations.

Description

Gantry Saw HBP1800-2100 GANTRY

Found in forging mills, rolling and gravity die-casting foundries, and steel finishing works, these machines offer the perfect solution for handling large dimensions. They serve as ideal large bandsaws for preproduction in tool and mold making factories, effectively saving valuable milling time.

Gantry saw HBP1800 GANTRY

Servo Feed System

The BEHRINGER servo feed system with cutting pressure control produces constant chip removal, especially with slow feed movements. Large and difficult-to-cut materials are thus sawn with the highest cutting performance and at the same time longer blade life.

Servo Feed System 10

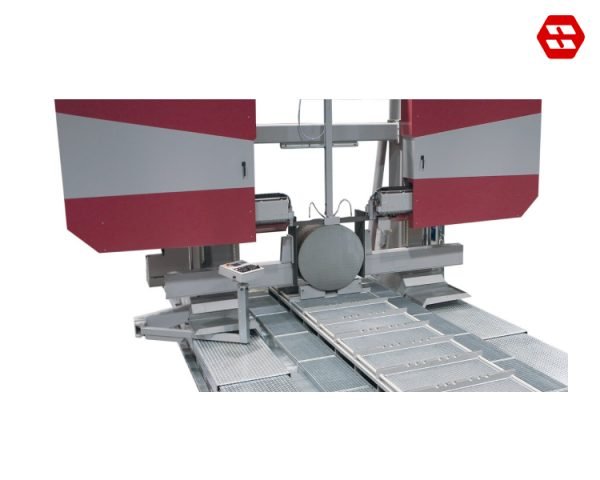

Centric Material Clamping

The material clamping vices and blade guide arms can be traversed independently of each other. The material is clamped in the position in which it was placed on the table, without the need for it to be moved to meet the fixed side of a vice.

Centric material clamping (2)

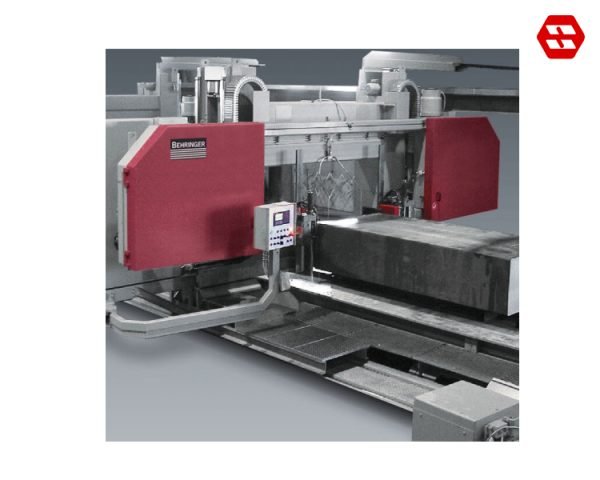

Gantry With Two or More Saw Units

This innovative solution enhances cutting efficiency by incorporating multiple saw units into a single gantry system. Ideal for high-volume production environments, this configuration maximizes throughput while maintaining precision and reliability.

SPECIAL Gantry with two or more saw units

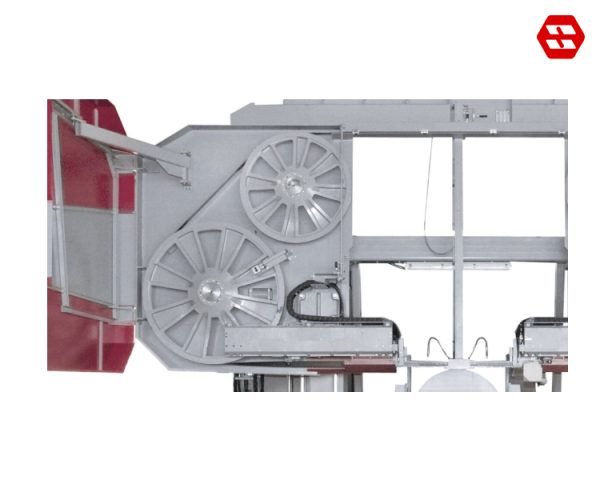

Cast Iron Band Guiding Parts

Cast iron band guiding parts are essential components in bandsaw machinery, providing stability and precision during cutting operations. Renowned for their durability and heat resistance, these components ensure accurate alignment and smooth movement of the bandsaw blade..

Cast iron band guiding parts 16

Carbide Blade Guides

Carbide blade guides represent the pinnacle of precision and durability in bandsaw blade guidance. Crafted from high-quality carbide materials, these guides offer exceptional wear resistance and thermal stability, ensuring prolonged performance even in demanding cutting environments. .

Carbide blade guides

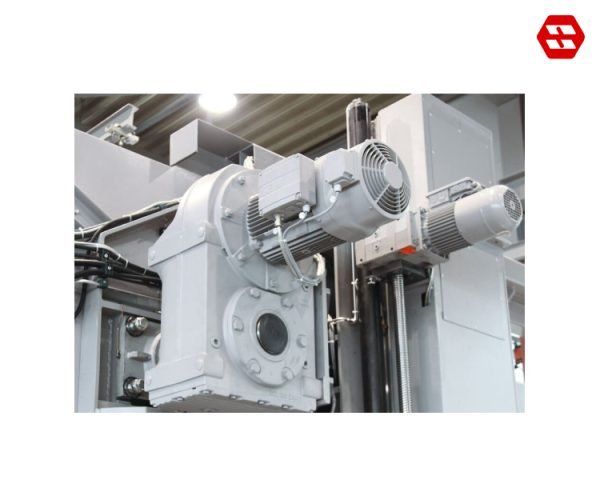

Powerful Saw Drive

A powerful saw drive is the beating heart of any cutting operation, providing the force necessary to swiftly and accurately slice through materials. Renowned for their robustness and reliability, these drives deliver high torque and speed, ensuring efficient and precise cuts in a variety of industrial settings.

Powerful saw drive

Duplex Chip Brushes

Duplex chip brushes are essential tools for efficient chip removal in machining operations. Featuring dual brush heads, these tools effectively sweep away debris and chips from workpieces and machinery, ensuring cleanliness and preventing damage.

Duplex chip brushes

Features of The Gantry Saw HBP1800-2100 GANTRY

Strong Saw Drive.

BEHRINGER large band saws feature a high-torque frequency controlled saw drive with heavyduty hollow shaft gearbox. Drives with different speed ranges are available to suit particular materials.

Simplified Material Handling.

The material support table is recessed in the foundation. Its low-level transition to the hall floor makes for simpler material handling.

Powered Duplex Chip Brushes

Actively clean the blade and prevent chips being drawn into the cutting channel.

Centric Material Clamping.

The optimum solution for bulky material. The material clamping vices and blade guide arms can be traversed independently of each other.

Optimum Accessibility.

BEHRINGER attaches great importance to the aspect of maintenance and servicing: All the important parts and components are very accessible.

Precise Guiding System in Portal Design.

The portal design of the machine concept is the most recognizable feature of the BEHRINGER large band saws.

Automation Possible.

BEHRINGER large bandsaws in the Gantry design can be upgraded to an automated sawing system.

Technical Data Gantry Saw HBP1800-2100 GANTRY

Cutting Range
Cutting range 90° round1,800 mm
Cutting range 90° flat2,100 x 1,800 mm
Smallest dimension to be sawn round500 mm
Smallest dimension to be sawn flat500 x 50 mm
Performance Characteristics
Drive power15 kW
Blade speed8 – 84 m/min
Saw blade dimensions16,040 x 80 x 1.6 mm
Total power30 kW
Table size L x W6,500 x 1,800 mm
Travel way of the portal (horizontal)5,000 mm
ravel way of the portal (vertical)1,850 mm
Dimensions and Weight
Length8,000 mm
Width8,400 mm
Height5,300 mm
Weight35,000 kg
