Bandsaw Machine Metal Cutting HBE610-1256 BEHRINGER

The Behringer HBE610-1256 is a robust and highly efficient semi-automatic bandsaw machine tailored for precision metal cutting. With its large cutting capacity and advanced features, it excels in handling a diverse range of metal types and sizes, making it suitable for various industrial applications.

Description

Metal Cutting HBE610-1256

The HBE610-1256 stands as a contemporary semi-automatic horizontal bandsaw, engineered for cutting structural steel, profiles, and plates with its sturdy build. Standard features include a servo motor-driven saw feed, BEHRINGER cutting pressure control, automatic guide arm adjustment, and a robust double clamping vice.

HBE610-1256

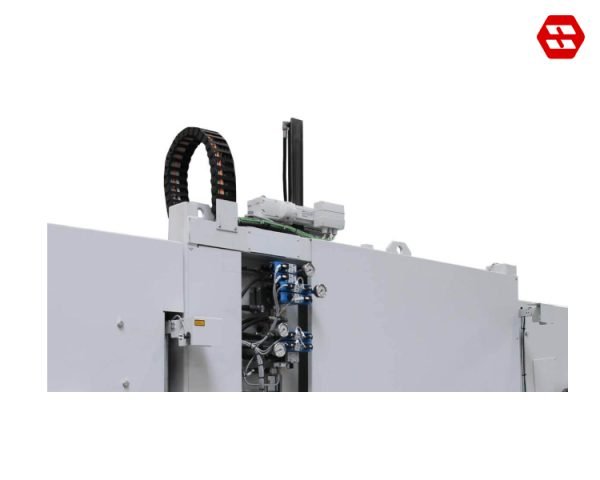

Servo Feed System With BEHRINGER Cutting Pressure Control

The servo feed system with BEHRINGER cutting pressure control is an advanced feature in bandsaw machinery, enhancing cutting precision and efficiency. Utilizing servo motor technology, it ensures smooth and accurate material feed, while the BEHRINGER cutting pressure control optimizes cutting forces for different materials.

Servo feed system with BEHRINGER cutting pressure control

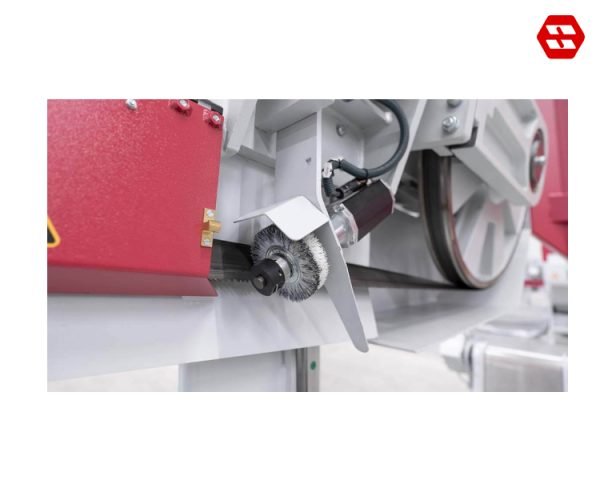

Electrically Driven Chip Brush

With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

Electrically driven chip brush 11

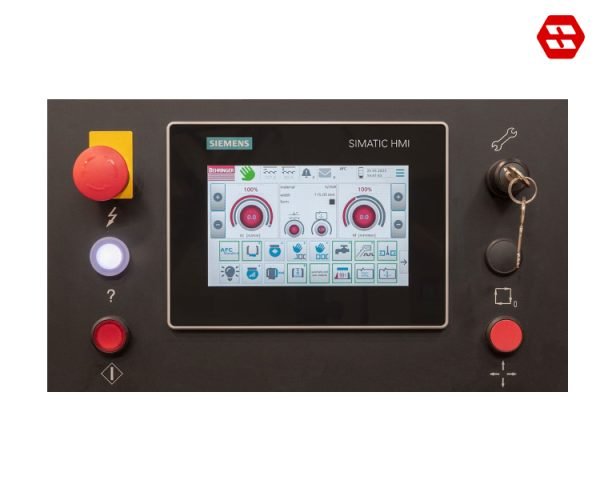

Intuitive BehrCtrl10 Touch Control

The Intuitive BehrCtrl10 touch control is a cutting-edge interface designed to streamline operation and enhance user experience in machinery and equipment.

Intuitive BehrCtrl10 touch control 8

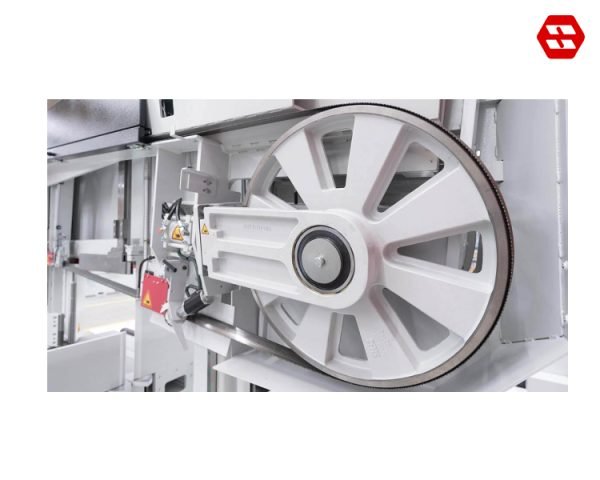

Cast Iron Band Guiding Parts

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Cast iron band guiding parts 9

Features of The Metal Cutting Bandsaw HBE610 -1256

Sensitive BEHRINGER Cutting Pressure Control.

Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.

Precision Portal-Design Guide System.

The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

Double Clamping Vice.

Is ideal for clamping single cuts. The clamping jaws are arranged on both sides of the saw band. When setting up, the material can simply be aligned with the blade.

Powerful Chip Conveyor.

Optimal chip disposal thanks to the funnel-shaped machine base and the paddle-style chip conveyor with an integrated coolant tank.

Automatic Guide Arm.

Optimum sawing result without any adjustments - even with frequently changing material sizes.

Servo Downfeed System.

The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.

Energy Efficient.

The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

Technical Data Metal Cutting Bandsaw
HBE610 - 1256

Cutting Range
Cutting range 90° round610 mm
Cutting range 90° flat1,250 x 610 mm
Smallest dimension to be sawn round30 mm
Smallest dimension to be sawn flat30 x 30 mm
Performance Characteristics
Drive power7.5 kW
Blade speed17 – 120 m/min
Saw blade dimensions10,000 x 54 (67) x 1.6 mm
Rest piece length45 mm
Total power16 kW
Dimensions and Weight
Length1,400 mm
Width4,850 mm
Height3,240 mm
Weight4,500 kg
Material support height800 mm
