Bandsaw Machine Table LPS-T BEHRINGER

BEHRINGER LPS-T Bandsaw Machine Table, meticulously designed to complement BEHRINGER bandsaw machines. This table offers robust support and stability for various cutting tasks, ensuring precise and efficient operation. Crafted with quality materials, the LPS-T is built to withstand industrial use while providing ease of setup and versatility.

Description

Table Bandsaw LPS-T

With its moveable support table, the easy-to-use LPS-T vertical saw is the all-rounder when it comes to sawing small, compact parts and short sections. Those are typically needed i.e. in toolmaking. The compact vertical saw - ideal for toolmaking and test cuts

Table band saw LPS-T

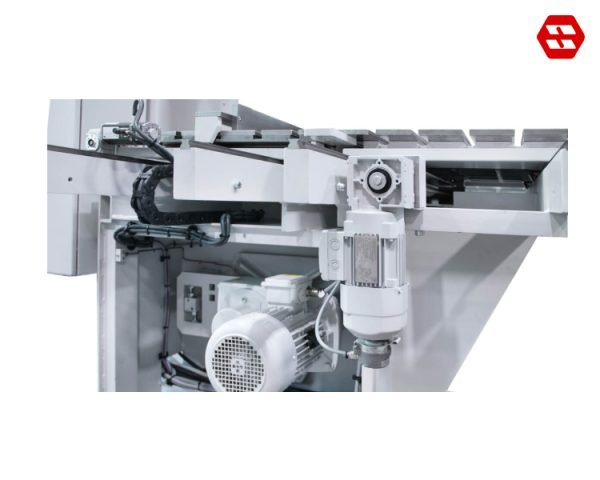

Table Positioning via Ball Screw Spindle

Achieve precise table positioning with ease using our ball screw spindle system. Designed for accuracy and reliability, this technology ensures smooth and efficient adjustments, enhancing the performance of your equipment.

Table positioning via ball screw spindle

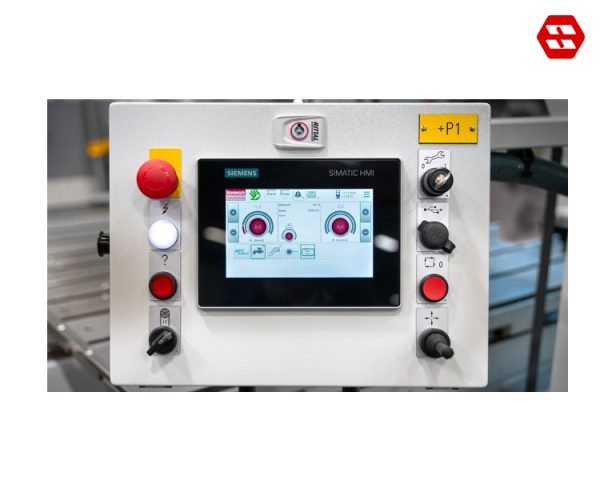

Intuitive Touch Control BehrCtrl10

Experience seamless control with the BehrCtrl10 intuitive touch system. Engineered for user-friendly operation, this advanced technology offers effortless navigation and precise adjustments.

Intuitive touch control BehrCtrl10

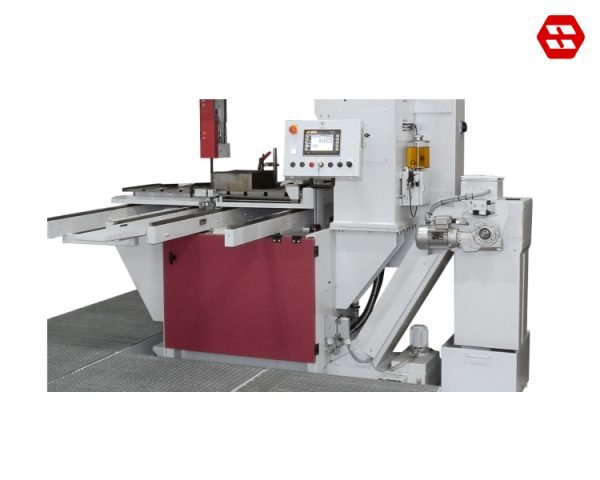

Chip Conveyor With Integrated Coolant Tank

A generously sized chip conveyor with integrated coolant tank is located under the saw unit, directly in the chip flow direction. Any chips and coolant are collected here and separated.

Chip conveyor with integrated coolant tank 2

A Special Solution: The Ring Saw

The Innovative Ring Saw—a specialized solution for unique cutting needs. Engineered for precision and versatility, this cutting-edge tool offers efficient and accurate cutting of various materials in unconventional shapes.

A special solution the ring saw

Features of The Table Bandsaw LPS-T

Quick Bandsaw Blade Change.

Quick and easy – tool-free bandsaw blade changes mean shortest set-up times. Just a few simple steps are all that is needed to change the bandsaw blade of the block saw.

Cast Iron Band Guiding Parts.

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Movable Material Support Table.

For easy loading and unloading by crane, the material table of the vertical saw can be moved out from under the saw unit.

Servo Feed System.

The BEHRINGER servo feeding system ensures constant chip removal and makes better use of the capabilities of modern bandsaw blades.

Unsurpassed Precision and Cutting Performance.

The high cutting accuracy, quiet running and long blade life are all down to the special torsion resistant design of the saw frame.

NC Measuring Unit.

The LPS-T can be equipped with an optional NC-controlled measuring unit. The cutting depth is digitally pre-programmed in the control system.

Technical Data Table Bandsaw LPS-T

Cutting Range
Cutting length1,270 mm
Cutting width620 mm
Cutting height600 mm
Minimum cutting width5 mm
Minimum cutting height10 mm
Performance Characteristics
Drive power4 kW
Blade speed17 – 120 m/min
Saw blade dimensions5,730 x 41 x 1.3 mm
Total power6 kW
Supporting area inside table1,260 x 640 mm
Supporting area outside table1,260 x 640 mm
Dimensions and Weight
Length2,900 mm
Width2,750 mm
Height3,120 mm
Weight3,200 kg
Material support height1,150mm
