Description
Cold Saw VMS 350
The Cold Saw VMS 350 is a versatile and high-performance metal-cutting machine designed for precision and efficiency. Renowned for its accuracy and reliability, this cold saw is equipped with advanced features to ensure consistent, high-quality cuts.
Worm Gearbox From Our Own Production
An ideally designed gearbox from our own production offers long blade life and maximum durability.
Convenient Mitre Adjustment
Convenient mitre adjustment refers to a user-friendly feature found in various tools and equipment, particularly in saws and cutting machines. This feature allows users to easily and quickly adjust the cutting angle, typically for making miter cuts.

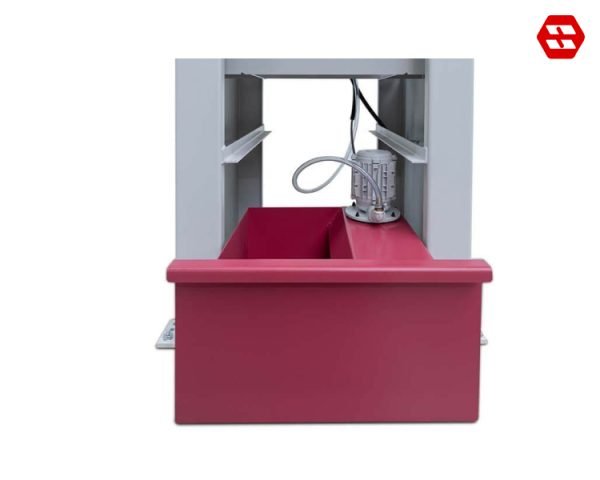

Coolant Device
A coolant device is a vital component in industrial machinery, particularly in metalworking equipment like saws and milling machines. Its primary function is to regulate and maintain the temperature of cutting tools and workpieces during the machining process.
Speed Selection of The Circular Saw
Speed selection of the circular saw refers to the ability to adjust the rotational speed of the saw blade to suit specific cutting tasks and materials. This feature allows operators to optimize cutting performance by selecting the appropriate speed for the job at hand.
Robust Material Vice
A robust material vice is an essential component of machinery, particularly in tools like saws and milling machines. It serves as a secure clamping mechanism to hold workpieces firmly in place during cutting or machining operations.
Features of The Cold Saw VMS 350
Sturdy Machine Base.
The heavy machine stand and the vibration-damping cast iron components made by BEHRINGER ensure a low-vibration sawing process and thus an increase in tool life.
User Friendly Mitre Adjustment.
This allows changing mitre angles to be set precisely and quickly.
Low Space Requirement.
High productivity with simultaneously compact dimensions of less than 1 m².
Clean Machine Design.
The coolant unit and the chip drawer are integrated into the machine base.
The Saw Feed can Easily be Set to The Shortest Possible Saw Travel.
The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically.
High Flexibility.
The cold saw VMS 350# can be flexibly adapted to your material flow.
Technical Data Cold Saw VMS 350
| Cutting Range | |
| Flat 90° | 170 x 100 mm |
| Flat 45° | 120 x 100 mm |
| Flat 30° | 85 x 100 mm 1) |
| Square 90° | 100 mm |
| Square 45° | 95 mm |
| Square 30° | 85 mm 1) |
| Round 90° | 120 mm |
| Round 45° | 120 mm |
| Round 30° | 100 mm 1) |
| Performance Characteristics | |
| Drive power | 1.4 / 1.9 kW |
| RPM standard | 17 / 34 – 34 / 68 min-1 |
| RPM optional | 10 / 20 / 40 / 80 min-1 |
| Saw blade diameter | 350 mm |
| Saw feed | manual |
| Material clamping | manual |
| Dimensions and Weight | |
| Length | 895 mm |
| Width | 665 mm |
| Height | 1,750 mm |
| Weight | 300 kg |
| Material support height | 990 mm |
