SHARK 282 SXI EVO

CAST-IRON STURCTURE

Semi Automatic Bandsaw Machine SHARK 282 SXI EVO MEP

The SHARK 282 SXI EVO is a versatile and robust semi-automatic bandsaw machine, expertly engineered for precision cutting across a variety of metal materials. This model stands out for its advanced design, incorporating adjustable cutting angles and a user-friendly electronic control panel that streamlines operation.

Categories: Bandsaw Machine, Horizontal, MEP, Semi-Automatic

Description

Description

SHARK 282 SXI EVO

SHARK 282 SXI EVO, electrohydraulic semi-automatic band sawing machine to cut metals mitering from -45° to +60°. In addition to the semi-automatic cycle, it can also operate with manual and semi-automatic/dynamic modes. The small size semi-automatic band sawing machine with big features

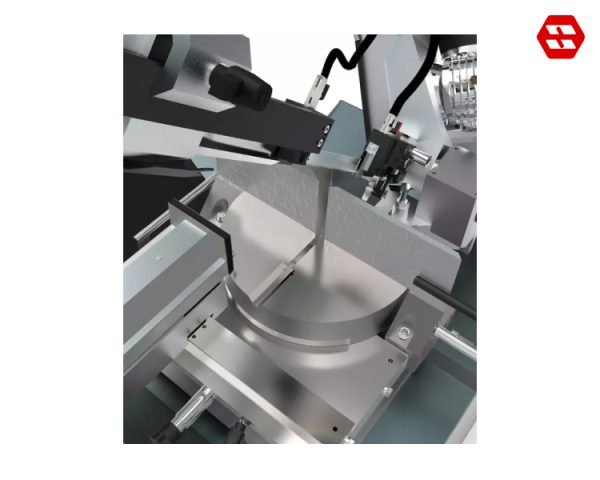

Cast Iron Structure

Cast-iron structure of the saw head, cutting table and vice to absorb vibration during the cut and ensure longer blade life.

Technical Data Bandsaw Machine Semi Automatic
SHARK 282 SXI EVO MEP

CUTTING RANGE


0°	250 mm	220 mm	280 x 220 mm
+45°	230 mm	200 mm	220 x 200 mm
+60°	120 mm	80 mm	140 x 80 mm
– 45°	200 mm	170 mm	200 x 140 mm

PERFORMANCE CHARACTERISTICS

Max. vice opening	285 mm
Band size	2950 x 27 x 0.9 mm
Blade motor power	1.5 / 1.8 Kw – Three-phase
Blade rotation speed	36 / 72 m/min – 2 Speeds
