Bandsaw Machine RF-916 RongFu

The RF-916 RongFu Bandsaw Machine is a compact yet powerful cutting tool designed for precision and versatility. Perfect for both professional workshops and hobbyists, it effortlessly handles various materials such as metal, plastic, and wood with ease. Large sized workshop step pulley bandsaw with variable speed control & upgrade options for cutting various types of pipe & bar efficiently.

Description

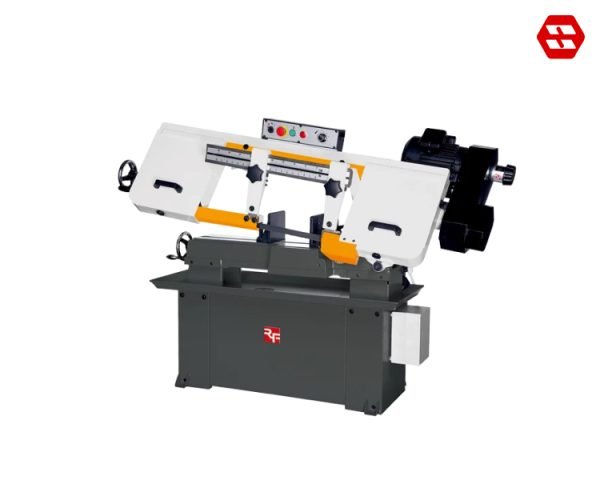

9” X 16” Step Pulley Metal Bandsaw RF-916

While the adjustable blade speed allows for optimal cutting performance tailored to different materials and thicknesses. With user-friendly controls and a durable bi-metal blade, the RF-916 delivers consistent and accurate cuts, making it an indispensable addition to any workshop or DIY enthusiast's toolkit.

RF-916 (1)

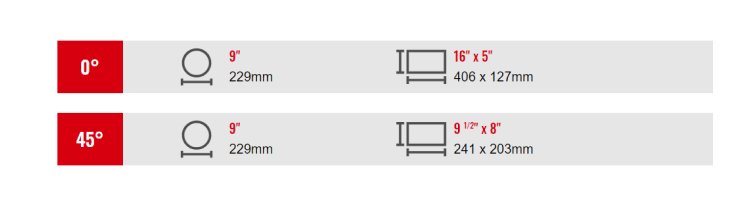

Cutting Capacity

Choose the right bandsaw for your needs based on its cutting capacity.

Features

RF-916S

Centralized Control Panel on Top of Saw Bow.
10L Coolant System.
Heavy-duty, Precision-ground, Cast Iron Table.
Hydraulic Downfeed Control.
Quick-positioning Vise.
Sliding Cutter Depth Gauge.
Handwheel Blade Tensioner.
One-piece Saw Bow.

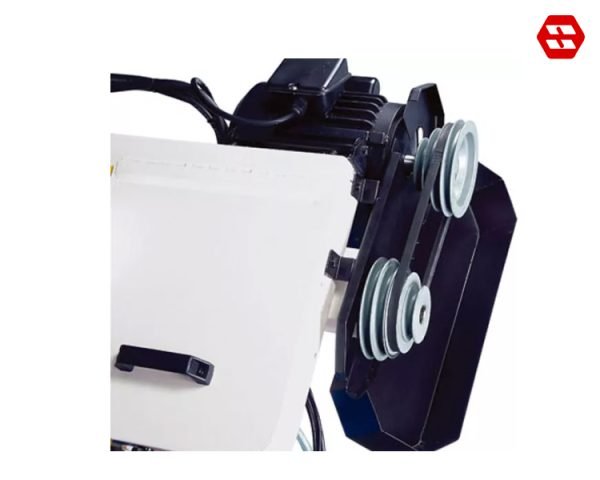

Easy-access to Belt Drive for Blade Speed Change.
Emergency Stop Button & Magnetic Safety Switch.

RF-916SV

Mechanical Variable Speed.

Table Specifications

ItemRF-916SRF-916SV
Main Motor HP1.51.5
Speed MT/min

60HZ / 32-60-88-115

50HZ / 29-50-73-96

60HZ /22-95
Speed Ft/min

60HZ /114-196-288-377

50HZ /95-164-239-314

60HZ /73-312
Saw Blade mm (WxTxL)27×0.9×291027×0.9×2910
Saw Blade inch (WxTxL)1.06×0.035×114.571.06×0.035×114.57
Machine Dimensions mm (LxWxH)1580x549x12291580x549x1229
Machine Dimensions inch (LxWxH)62.2×21.6×48.462.2×21.6×48.4
Packing Dimensions mm (LxWxH)1700x624x1235
(SKD 1680x485x1145)
1700x624x1235
(SKD 1680x485x1145)
Packing Dimensions inch (LxWxH)67x25x49
(SKD 66x19x45)
67x25x49
(SKD 66x19x45)
Machine Weight NW/GW280/310 kgs
620/680 lbs
280/310 kgs
620/680 lbs
No.of Machines
Packed in 20″ container
18 sets / SKD 30sets18 sets / SKD 30sets
